About configuring an air-conditioned room for the laser source, to make the laser source operate better and more stably and prolong its life of the laser source.
The size of the air-conditioned room: width*length*height=2000MM*2500MM*2000MM, the space of the entire air-conditioned room is about 10m³,

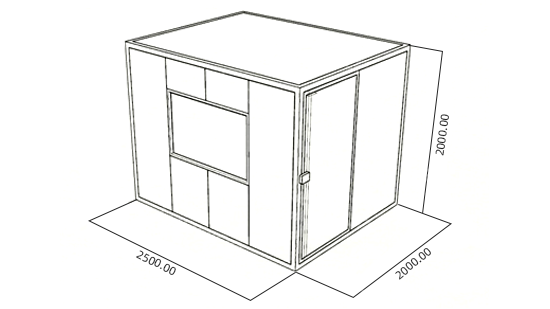

The dimension drawing of the air-conditioned room is shown in Figure 1 below.
Figure 1

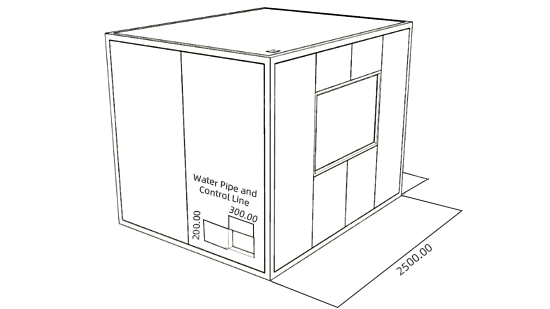

The inlet of the water pipe and control line are shown in Figure 2;
Figure 2

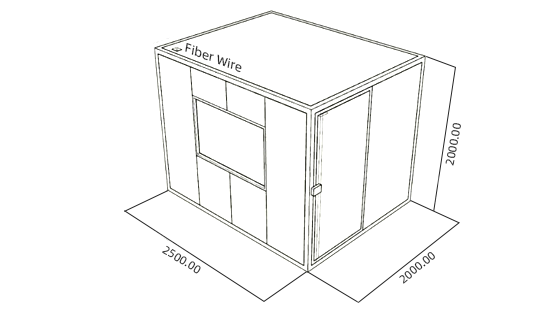

The fiber optic cable outlet is shown in Figure 3;
Figure 3
Schematic diagram of the Air Conditioner installation, as shown in Figure 4;
Figure 4
After the installation is completed, the overall effect drawing is shown in Figure 5, and the air-conditioned room should be well sealed around.
Figure 5
In terms of air-conditioning, it is recommended: 1.5 hp (or 2 hp) Air Conditioner, dual temperature, with dehumidification function. It is recommended to choose an Air Conditioner of regular well-known brands.
The size of the air-conditioned room: length*width*height=1500mm*1500mm*2000mm. The space of the whole air-conditioned room is about 4.5m³,

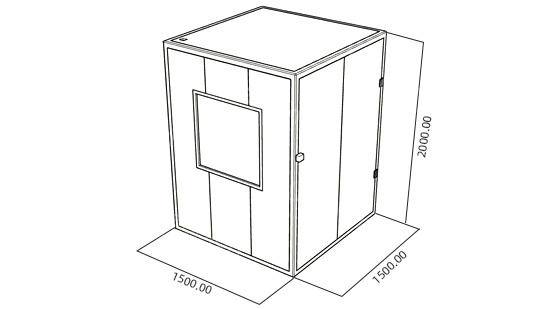

The dimension drawing of the air-conditioned room is shown in Figure 6 below.
Figure 6

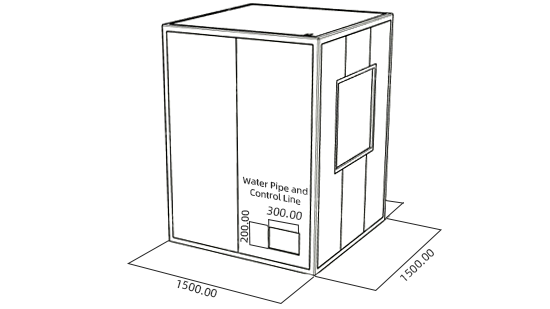

The inlet of the water pipe and control line are shown in Figure 7;
Figure 7

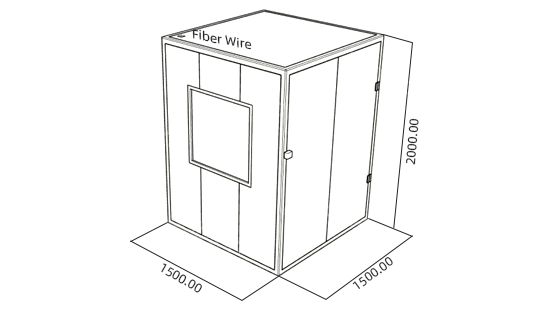

The fiber optic cable outlet is shown in Figure 8;
Figure 8

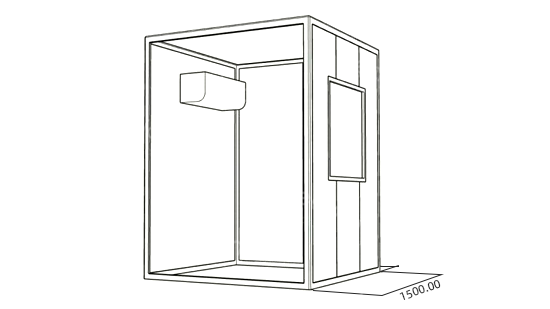

Schematic diagram of the Air Conditioner installation, as shown in Figure 9;
Figure 9
In terms of the air conditioning of the small air-conditioned room plan, it is recommended: 1 hp Air Conditioner, dual temperature Air Conditioner, with dehumidification function. It is recommended to choose an Air Conditioner of regular well-known brands.
