Laser cutting machine

Automatic Loading Tube

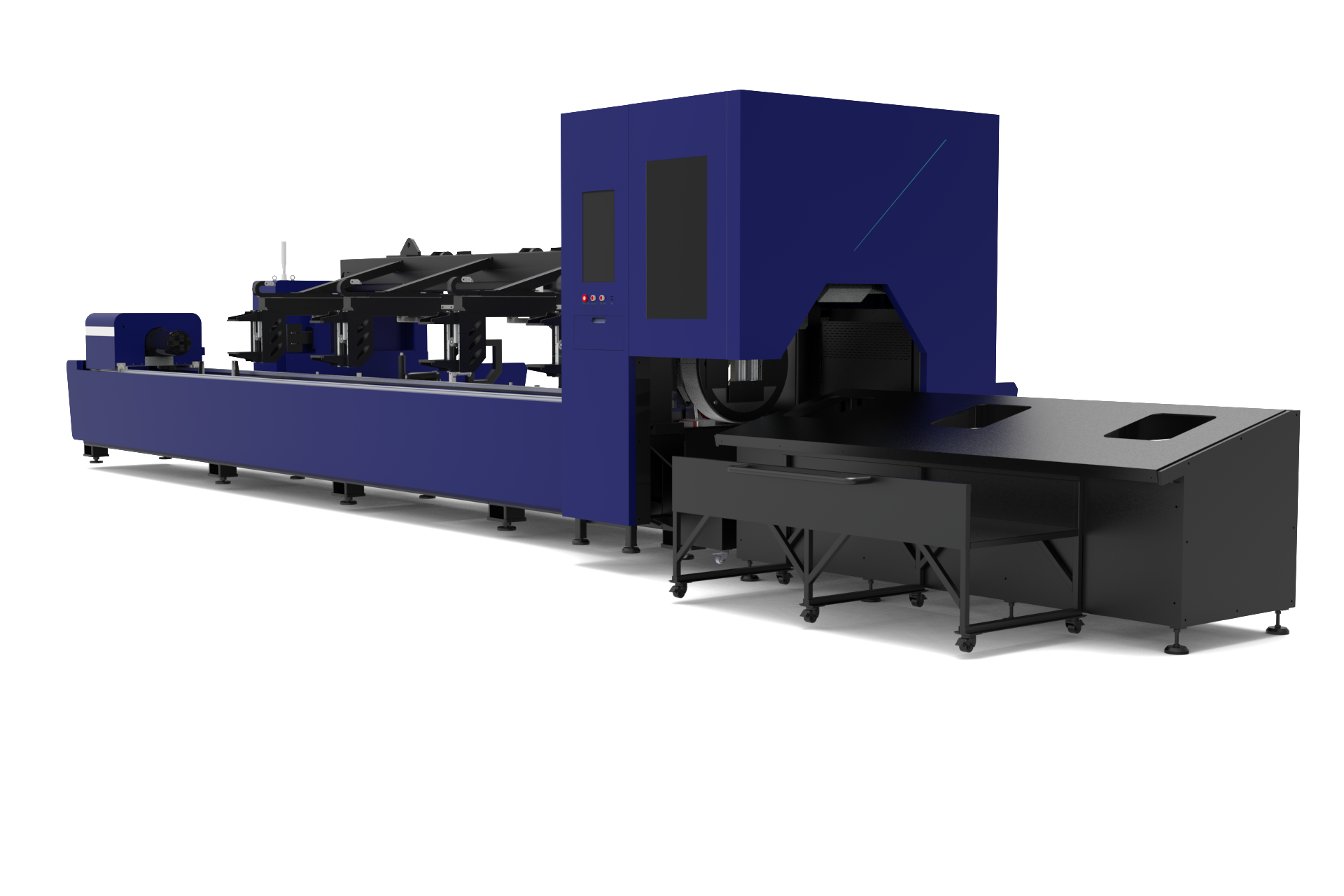

Laser Cutting Machine

M o r e    s t a b l e  ,   m o r e    e f f i c i e n t

You are here: Home » Laser Machine » Tube fiber laser cutting machine » LF-AT Automatic loading tube laser cutting machine

Live video recording
Misappropriation will be investigated

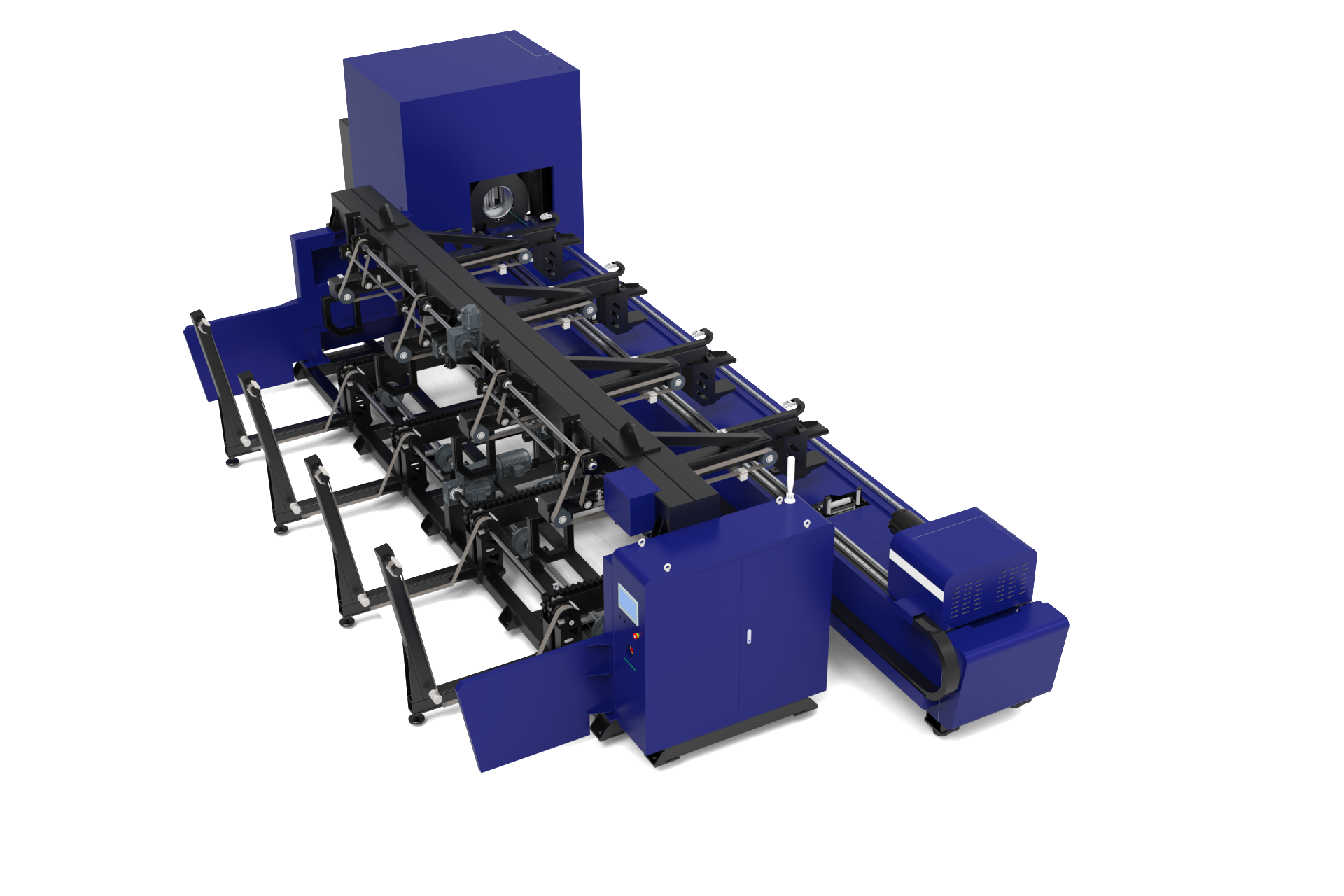

Automatic loading system

Automatic material loading and unloading device is controlled using a numerical control system to feeding the pipes these pipes can be intelligently divided, loaded and connected seamlessly with the pipe cutter to ensure that only one pipe is transported to the delivery arm at a time. This decreases the cost of manually delivery materials

Tube cutting capacity

 LF-T professional pipe fiber cutting machine.
It can process all kinds of round, square, rectangule, oval tube and max. diameter 220mm for round tube
Running speed 120m/min, Rotating speed: 100r/min

high efficient and time saving.



Intelligent recognition

With contour recognition system, it can automatically identify standard round, oval, square and other special-shaped pipes.

Tubes realize non-inductive and high-efficiency detection, and realize the position deviation of the whole meter section’s cutting accuracy within 0.15mm.

Automatic clamping
The front and rear are equipped with fully automatic pneumatic chuck, which can clamp automatically and determine the pipe center automatically. the diagonal adjustable range is 10-210mm.
Automatic support bracket
Support different types of pipes intelligently,The problem of long pipe deformation is solved

Machine Body

Adopts national standard square tube, 600 ℃ high-temperature heat treatment, 12 meters gantry milling with finishing, 24 hours cooling inside oven ensuring the long-term use of the machine without deform hence the accuracy of the machine is guaranteed.

Laser Cutting head RAYTOOLS / WSX / PRECITEC (optional)

Various brands of laser head are available

We can provide all high quality laser heads on the market. It's been tested by us for a long time. Empower/WSX all of our long-term partners.


The closed-loop stepping motor is adopted to effectively avoid step loss. The focusing speed is ≤10m/min, and the repetition accuracy is ≤50μm. IP65 class dust-proof, patent protection mirror cover plate, dust-proof without dead angle.

Multiple protection

3 pieces of protection lens, highly effective protection of collimating focus lens. 2-way optical water cooling, effectively extending the continuous working time.

Efficient Water Cooling
Highly Dust-proof
  • mm
      Moel No.   LF-6T   LF-9T
      Effective Pipe Cutting Length   6000mm   9000mmm
      Output Power   4000w/3000w/2000w/1500w/1000w
      Effective Pipe Cutting Diameter   Φ20mm-220mm
      Effective Square Tube Cutting Scope   □20mm*20mm □150mm*150mm
      Rectangular tube   Edge Length   20-150mm
      Outer Circle Diameter   ≤220mm
      X/Y-axis positioning accuracy   0.03mm
      X/Y-axis repositioning accuracy   0.02mm
      Max.acceleration   1.0G
      Single pipe support   380KG
  •   Moel No.   LF-6T
      Effective Pipe Cutting Length   255.90in
      Output Power   4000w/3000w/2000w/1500w/1000w
      Effective Pipe Cutting Diameter   Φ0.78in-8.66in
      Effective Square Tube Cutting Scope   □0.78in*0.78in □5.90in*5.90in
      Rectangular tube   Edge Length   0.78in-5.90in
      Outer Circle Diameter   ≤8.26in
      X/Y-axis positioning accuracy   0.0011in
      X/Y-axis repositioning accuracy   0.00078in
      Max.acceleration   1.0G
      Single pipe support   380KG
How does the laser machine process ?
4-application 4-cut 4-engrave 4-marke 4-weld
  Stainless steel
  Carbon steel
  Galvanized sheet
  Nickel plate
  Manganese plate
What materials can be processed ?

Fiber laser cutter machine upgrades  , makes your machine more powerful
Smoke purifier

Remove the dust and smoke generated during laser processing to protect the environment and human health
Air compressor

It integrates air compressor, dryer and air storage tank. It has small volume and low noise

Keep the voltage stable, make the machine work safer and more secure
