Electro-Hydraulic Press Brake | CNC Hydraulic Bending Machine

English

ELECTRO-HYDRAULIC HYBRID

High-precision CNC bending machine for sheet metal fabrication — ±0.02 mm repeatability, servo-driven synchronization, CE certified.

Get a Free Quote

Download Brochure (PDF)

Chat on WhatsApp

You are here: Home » Laser Machine » Press brake » electro hydraulic press brake

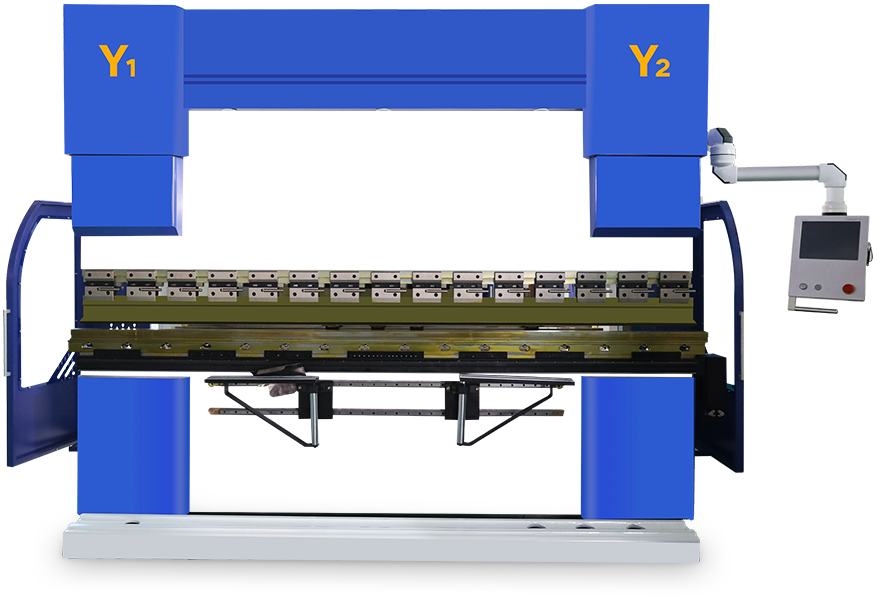

Leapion Press Brake Machine Product Overview

Performance Benefits

This press brake, based on our years of cutting-edge bending technologies and experience, is focusing on how to improve bending efficiency and precision. We can offer various models and also accept individual customization.

Front Card Side Shift Design

The Leapion electro-hydraulic hybrid press brake combines a CNC control system with a servo-driven hydraulic cylinder to deliver fast, stable and highly repeatable bending on carbon steel, stainless steel and aluminum sheets. Built on a finite-element-analyzed welded frame, it is engineered for 24/7 production in sheet metal, kitchenware, elevator, automotive and cabinet industries.

Mechanical Benefits

Its machine tool bed is high in strength, of which frame is under more uniform stress after undergoing finite element analysis

The electro-hydraulic hybrid synchronization technology helps to take more accurate control of slide blocks

Intuitive CNC Control

Equipped with an industry-standard CNC controller (DA53T / E21 optional), the system supports graphical programming, multi-step bending sequences, automatic angle compensation and a built-in material/tooling database — operators get productive within one shift.

Key Benefits

High Precision

Electro-hydraulic synchronous control, bending repeatability up to ±0.02 mm.

Rigid Frame

FEA-optimized welded steel body, stress-relieved, 3,200 kg total mass for vibration-free bending .

Fast Cycle

Working speed 8 mm/s, return speed 80 mm/s, reducing cycle time by up to 30% vs. standard hydraulic models .

Smart CNC

Graphic HMI with built-in bending database; operators can run jobs with zero programming experience.

Technical Specifications

Equipped with an industry-standard CNC controller (DA53T / E21 optional), the system supports graphical programming, multi-step bending sequences, automatic angle compensation and a built-in material/tooling database — operators get productive within one shift.

Parameter	Value
Distance between columns	1,880 mm
X-axis travel	530 mm
Open height	70 mm
Cylinder travel (stroke)	120 mm
Adapter height	100 mm
Clamping die size	13 × 30 mm
Punch height	150 mm
Max. open height (manual)	375 mm
Working speed	8 mm/s
Return speed	80 mm/s
Oil tank volume	170 L
Machine dimensions (L×W×H)	2,650 × 1,600 × 2,300 mm
Machine weight	3,200 kg

Power supply	380 V / 50 Hz / 3-phase (customizable)
Certification	CE, ISO 9001

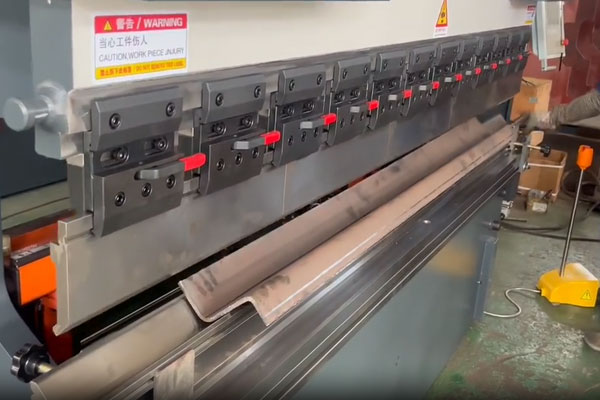

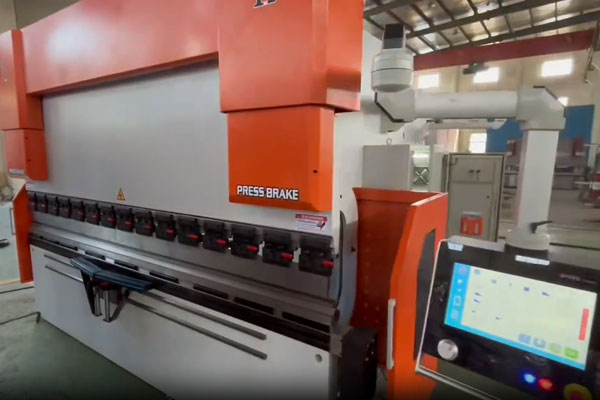

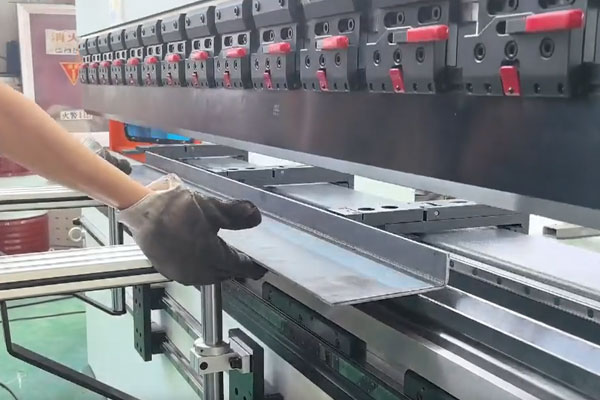

Applications

Why Choose Leapion

3-Year Warranty

Industry-leading 3-year warranty on core components with 24/7 remote engineer support .

Global Installation

Local service partners in 30+ countries, on-site commissioning and operator training.

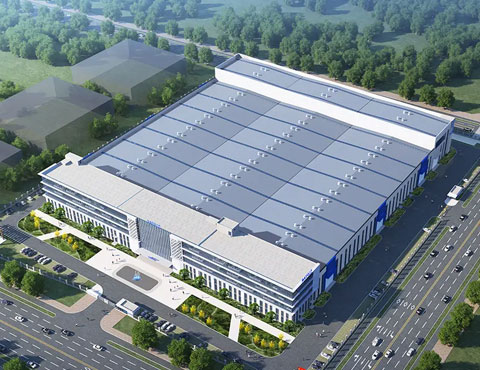

Factory Direct

120,000 m² manufacturing base in Shandong, China — no middlemen, direct factory pricing .

Free Training

Lifetime video tutorials, multilingual manuals and live video guidance for your operators.

Voices From User

We've been using Leapion's laser cutting machine for a few months now and the difference in quality is night and day. The machine's features, especially the Automatic Support Bracket, have made our long pipe projects a breeze.

Raj Patel
Leapion's laser cutting machine has been a game-changer for our business. The Automatic Clamping feature saves us so much time and the cuts are incredibly precise. Highly recommended!

Alex Johnson
The Intelligent Shape Identification on Leapion's machine is unlike anything we've used before. It's made our workflow much more efficient and the results speak for themselves.

Maria González

Q What Functions Does the 4 in 1 Laser Welding Machine Have?

A Our 4 in 1 laser welding machine provides welding, cutting, and cleaning all in one. This versatile tool processes metal with utmost precision, speed, and minimal thermal impact, all while being eco-friendly. It's an economical choice for factories that require the full range of functions. However, for those who need only welding, the additional features may mean higher costs. It’s perfect for users who require the versatility of welding, cutting, and cleaning, but less so for those with singular weld needs.
Q What is the Difference Between Laser Cleaning Function and Professional Laser Cleaner?

A The cleaning feature of our 4-in-1 laser machine utilizes continuous laser technology, offering an efficient and straightforward solution for removing rust and paint from metal surfaces. It is particularly suitable for regular maintenance tasks where precision is less critical.
Q Is Laser Welding Safe?

A Laser welding is part of the four-in-one welding machine function. is markedly safer and more controlled compared to traditional TIG welding. It minimizes exposure to harmful radiation. When operators are equipped with the safety gear(such as laser glasses and gloves), It is very safe for day-to-day operations.
Q What Thickness Can the 4-in-1 Machine Cut?

A
The 4-in-1 machine excels in cutting thin metal materials. While it is not a substitute for a fiber laser cutting machine, it has commendable cutting capabilities.

With 1200W power, it can cut 2mm stainless steel and carbon steel, and 1mm aluminum.
