LR-AE

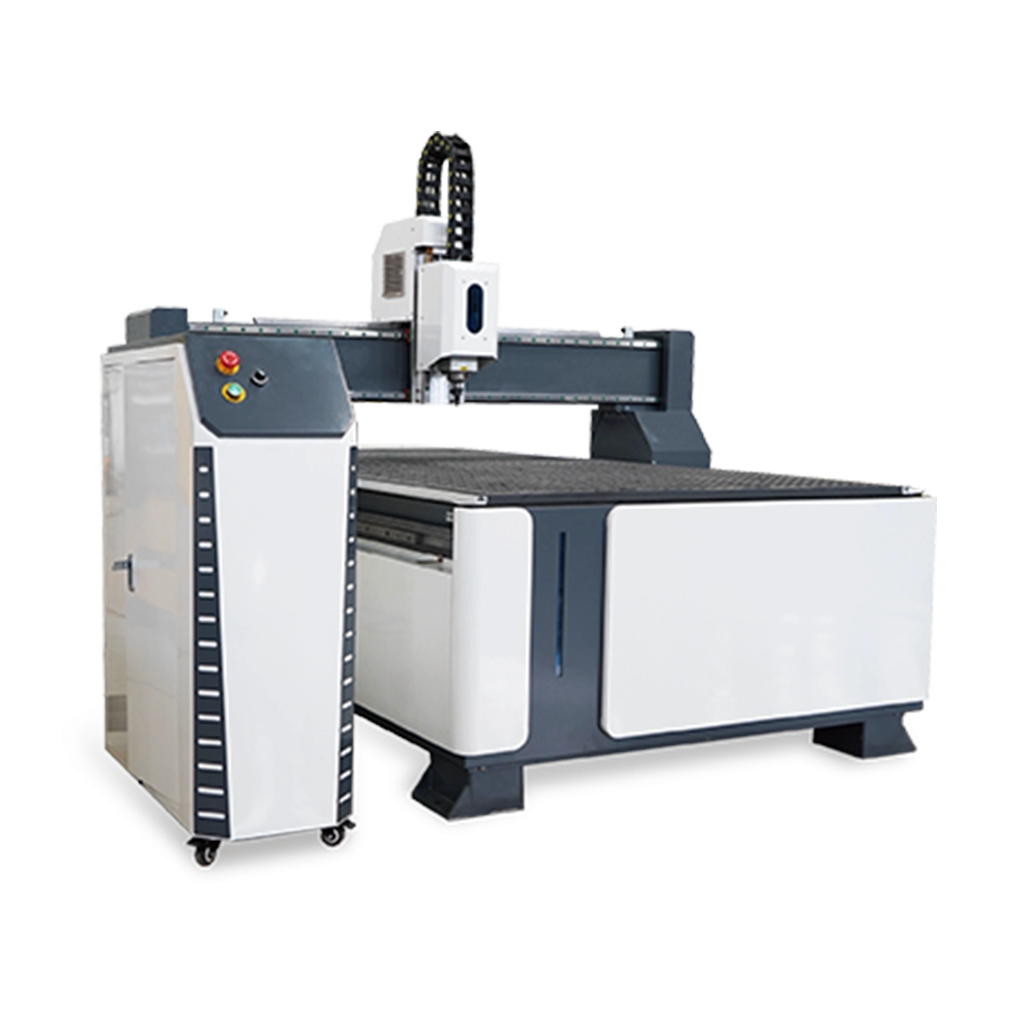

ATC CNC Router Cutting Machine

M o r e s t a b l e , m o r e e f f i c i e n t

You are here: Home » LR-AE ATC CNC router cutting machine

EU design standards

All core accessories adopt top international brands, which can realize 5-year zero fault operation. As a very cheap ATC machine, this will be your first choice.

Why to choose ATC machine

6/8/12 ATC is available. 12 seconds for tool change. Greatly improved work efficiency and Multi process complex work can achieve unattended, one-time processing.

High power motorized spindle can easily process all kinds of materials

wood/MDF/metal/PVC/plastic all common materials can be cut and engraved. 7.5KW/9KW/12KW are available.International standard ISO and F63 also no problem.

Servo motor is standard configuration

YASKAWA/Fuji/DELTA/Leadshine servo motor multi options. Ensure high precision and stable operation of the machine

Automatic lubrication system

Remove the tedious operation, the automatic lubrication system makes the machine more intelligent. Take good care of your machine from the correct maintenance.

Tool sensor makes processing accuracy higher

Automatic tool calibration pad is designed for easily and accurately recording of tool length

Smart control system

LNC control system based on computer operation mode more intuitive and simple. Manual Pulse Generator (MPG)
The MPG allows the operator to move around the machine, making for easy setup

TECHNICAL
PARAMETERS

mm
inch

mm

Moel No.	LR-1325AE	LR-1530AE	LR-2040AE	Customized
Working size	1300*2500mm	1500*3000mm	2000*4000mm	√
Z-axis clearance	200mm			√
Repeatability	±0.03mm			×
Drive system X and Y-axis	Helical rack and pinon			×
Drive system Z-axis	ball screw			×
Guide rails	20/25mm linear ball-bearing profile rails（HIWIN/PMI/THK）			√
Motor & drive	YASKAWA(DELTA/FUJI)servo motor			√
Spindle	7.5KW/9KW/12KW air cooling			√

inch

Moel No.	LR-1325AE	LR-1530AE	LR-2040AE	Customized
Working size	51*98inch	59*118inch	79*157inch	√
Z-axis clearance	7.9inch			√
Repeatability	±0.001inch			×
Drive system X and Y-axis	Helical rack and pinon			×
Drive system Z-axis	ball screw			×
Guide rails	0.8/1inch linear ball-bearing profile rails（HIWIN/PMI/THK）			√
Motor & drive	YASKAWA(DELTA/FUJI)servo motor			√
Spindle	7.5KW/9KW/12KW air cooling			√
