Laser cutting machine
 LF-T

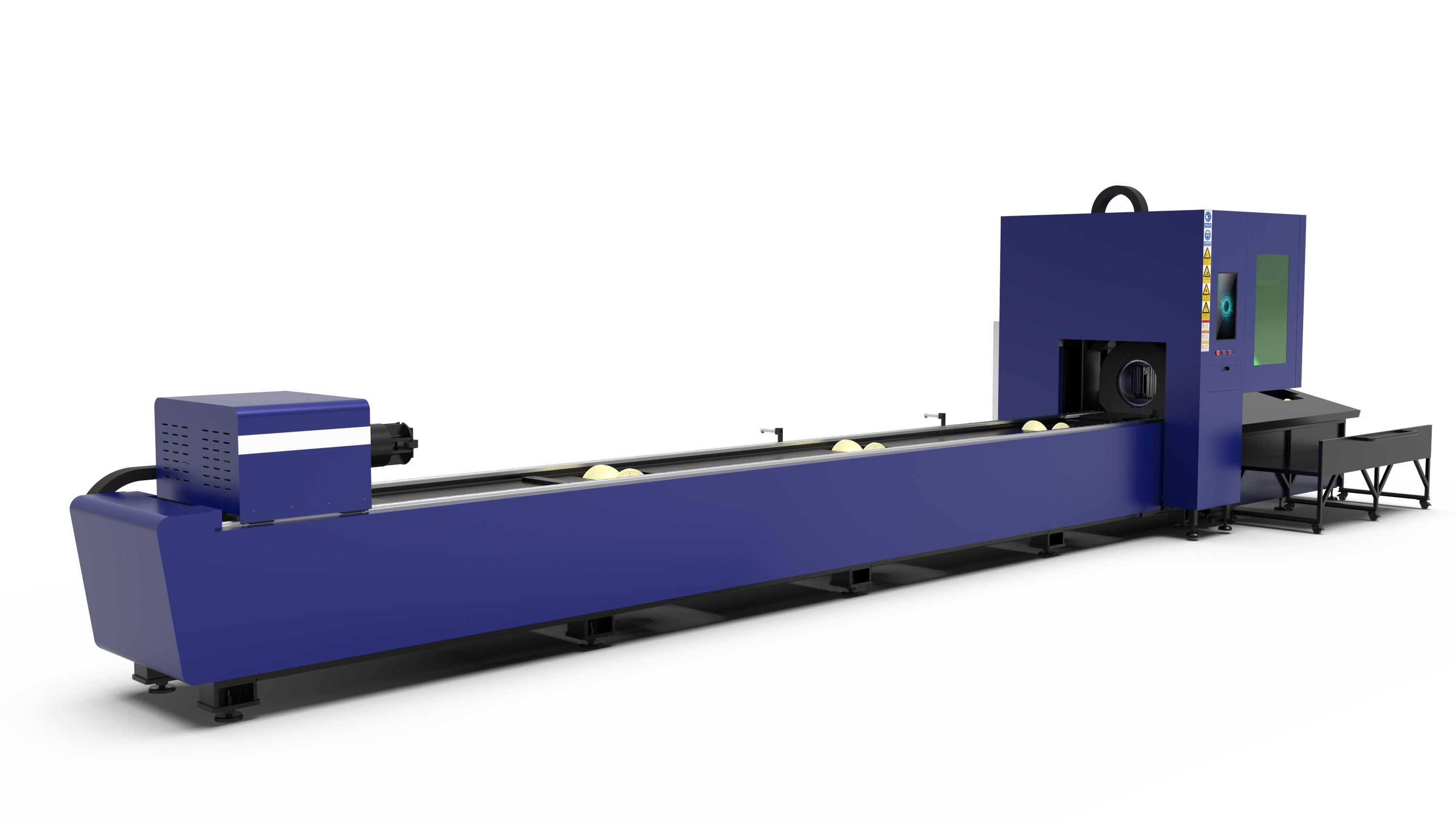

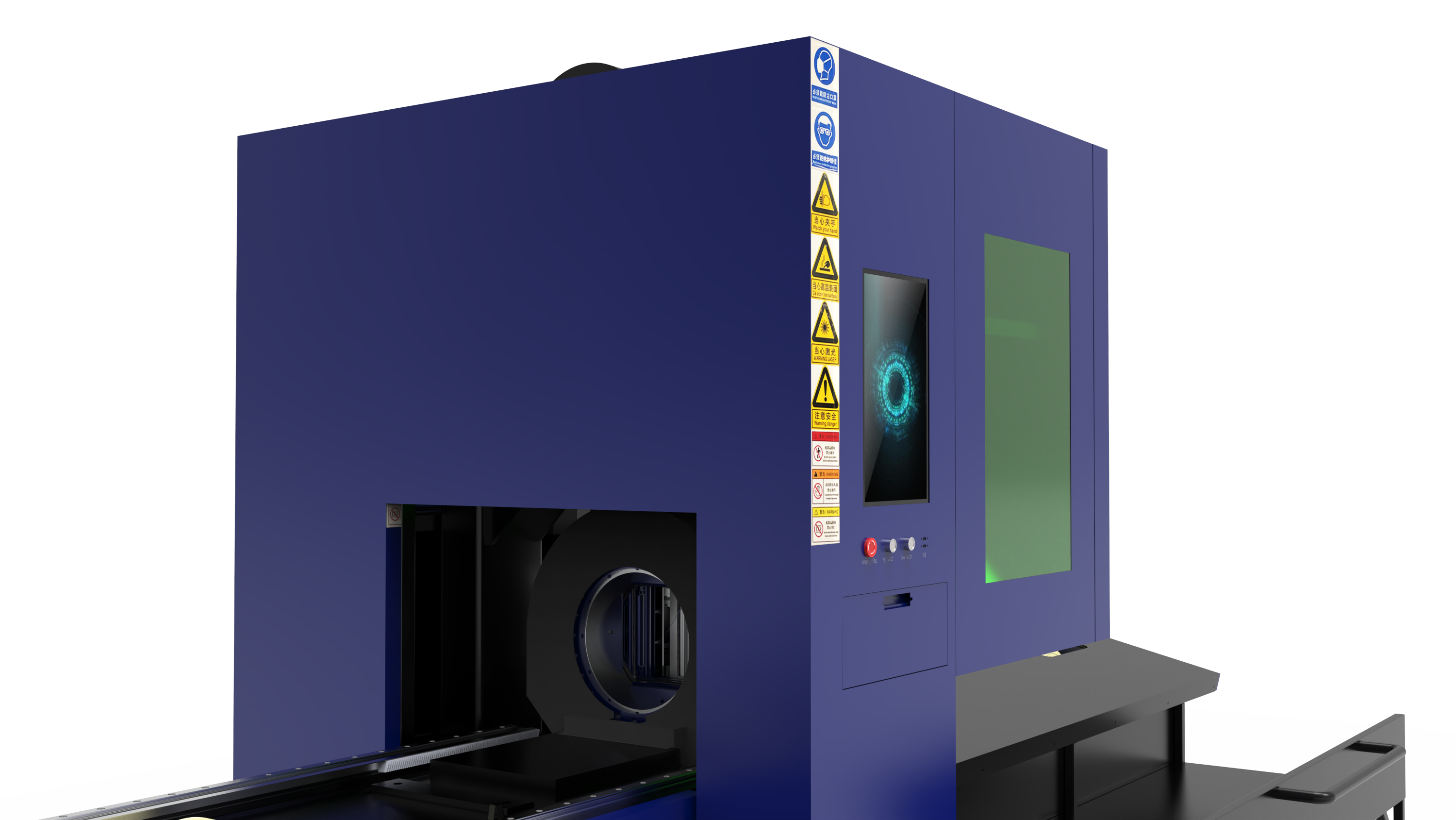

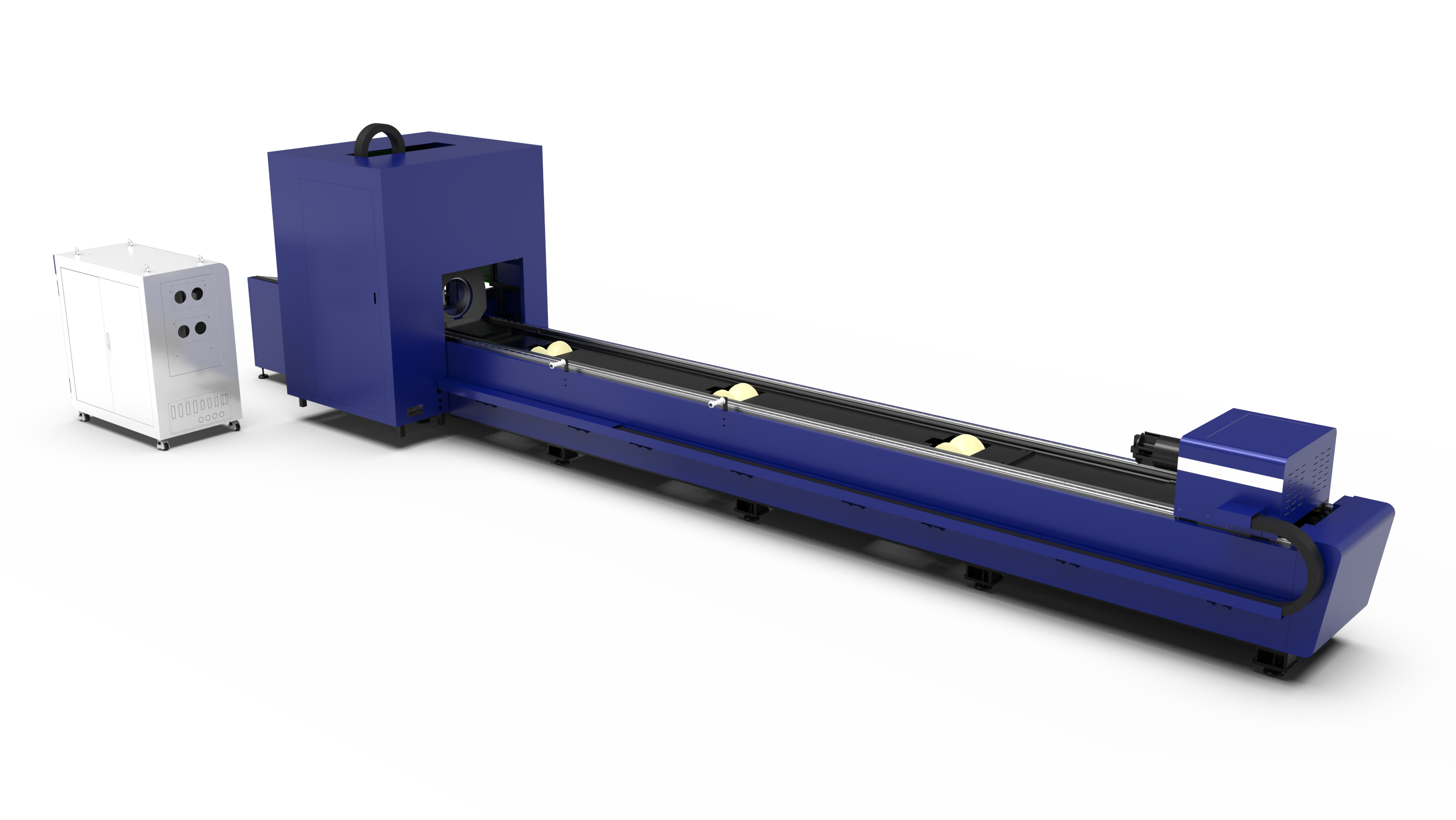

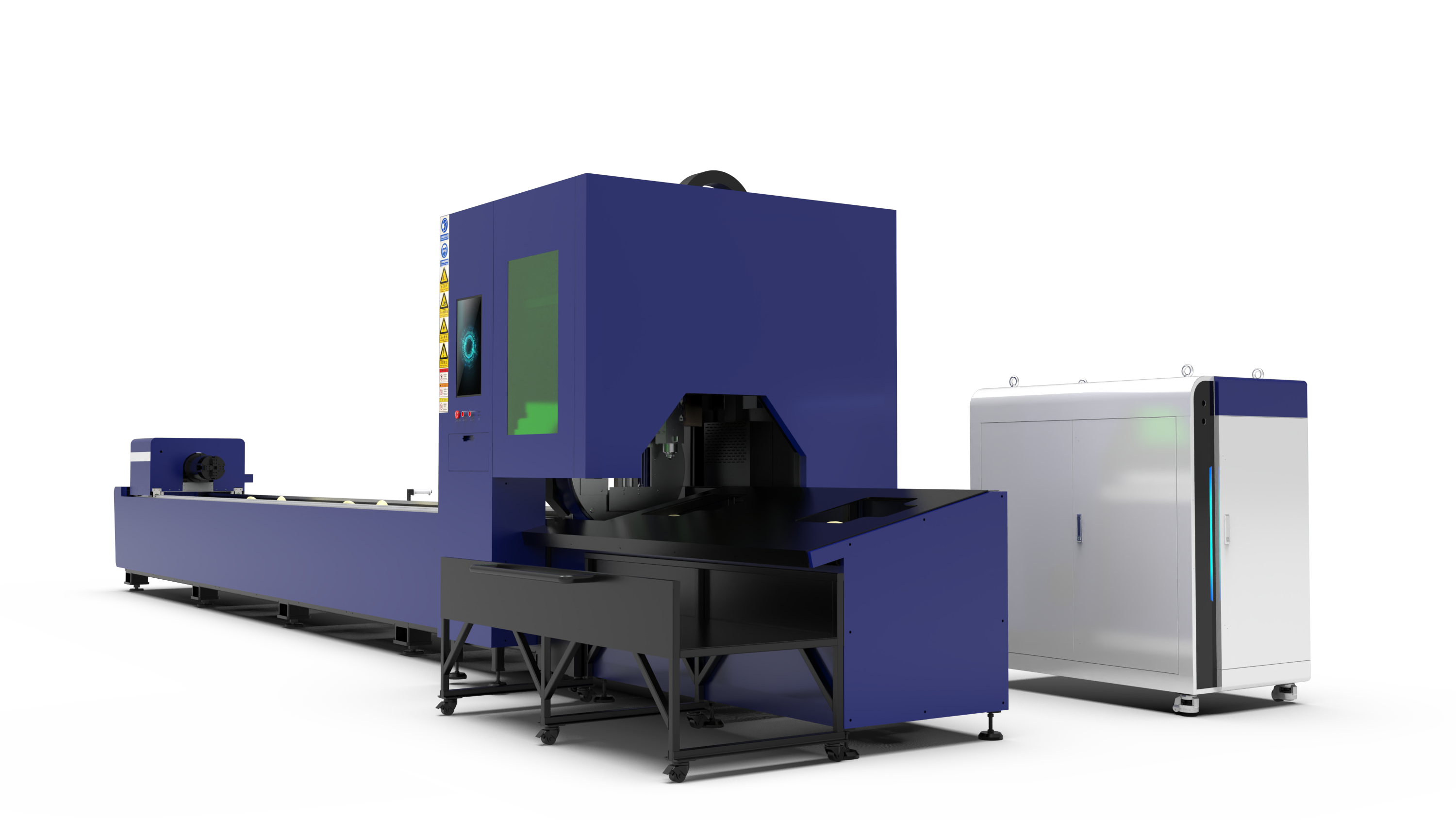

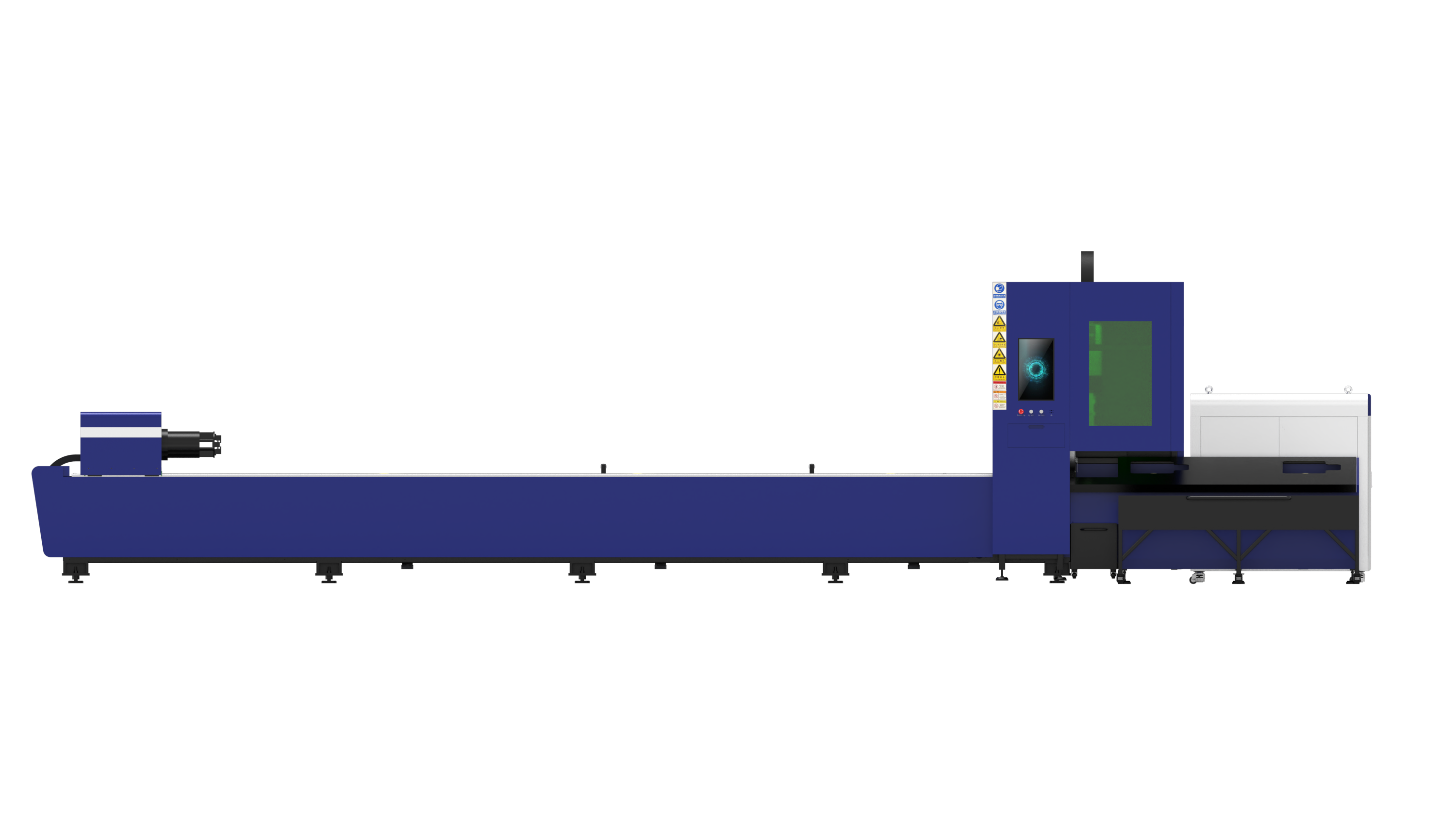

Tube Fiber Laser Cutting Machine

M o r e    s t a b l e  ,   m o r e    e f f i c i e n t

You are here: Home » Laser Machine » Tube fiber laser cutting machine » LF-T Tube fiber laser cutting machine
SHEYING2

Live video recording
Misappropriation will be investigated

Tube cutting capacity

 LF-T professional pipe fiber cutting machine.
It can process all kinds of round, square, rectangule, oval tube and horn-type pipe with max. Cutting diameter: round pipe 20-220mm, square pipe 20-160mm;

Running speed is 140m/min, working idle speed is 170r/min, high efficient and time saving.






Intelligent recognition

With contour recognition system, it can automatically identify standard round, oval, square and other special-shaped pipes.


Tubes realize non-inductive and high-efficiency detection, and realize the position deviation of the whole meter section’s cutting accuracy within 0.15mm.

Automatic clamping
The front and rear are equipped with fully automatic pneumatic chuck.
the diagonal adjustable range is 20-220mm.
Automatic support bracket
Support different types of pipes intelligently,The problem of long pipe deformation is solved

Machine Body

Adopts national standard square tube, 600 ℃ high-temperature heat treatment, 12 meters gantry milling with finishing, 24 hours cooling inside oven ensuring the long-term use of the machine without deform hence the accuracy of the machine is guaranteed.

Laser Cutting head RAYTOOLS / WSX / PRECITEC (optional)

Various brands of laser head are available

We can provide all high quality laser heads on the market. It's been tested by us for a long time. Empower/WSX all of our long-term partners.

High-precision

The closed-loop stepping motor is adopted to effectively avoid step loss. The focusing speed is 100 m m / s and the repetition accuracy is 1 μ M. IP65 class dust-proof, patent protection mirror cover plate, dust-proof without dead angle.

Multiple protection

3 pieces of protection lens, highly effective protection of collimating focus lens. 2-way optical water cooling, effectively extending the continuous working time.

Efficient Water Cooling
Highly Dust-proof
TECHNICAL
PARAMETERS
  • mm
      Moel No.   LF-6T   LF-9T
      Effective Pipe Cutting Length   6000mm   9000mmm
      Output Power   4000w/3000w/2000w/1500w/1000w
      Effective Pipe Cutting Diameter   Φ20mm-300mm
      Effective Square Tube Cutting Scope   □20mm*20mm □240mm*240mm
      Rectangular tube   Edge Length   20-160mm
      Outer Circle Diameter   ≤220mm
      X/Y-axis positioning accuracy   0.05mm
      X/Y-axis repositioning accuracy   0.03mm
      Snail roller   Servo snail idler
  •   Moel No.   LF-6T
      Effective Pipe Cutting Length   255.90in
      Output Power   4000w/3000w/2000w/1500w/1000w
      Effective Pipe Cutting Diameter   Φ0.78in-11.81in
      Effective Square Tube Cutting Scope   0.78in*0.78in □ 9.44in*9.44in
      Rectangular tube   Edge Length   0.78in-6.29in
      Outer Circle Diameter   ≤8.66in
      X/Y-axis positioning accuracy   0.0019in
      X/Y-axis repositioning accuracy   0.0011in
      Snail roller   Servo snail idler
How does the laser machine process ?

4-application 4-cut 4-engrave 4-marke 4-weld
MATERIALS CUT ENGRAVE MARK WELD
  Stainless steel
  Carbon steel
  Aluminum
  Copper
  Galvanized sheet
  Gold
  Silver
  Nickel plate
  Manganese plate
What materials can be processed ?
UPGRADES

Fiber laser cutter machine upgrades  , makes your machine more powerful
Air compressor

It integrates air compressor, dryer and air storage tank. It has small volume and low noise
Stabilizers

Keep the voltage stable, make the machine work safer and more secure
