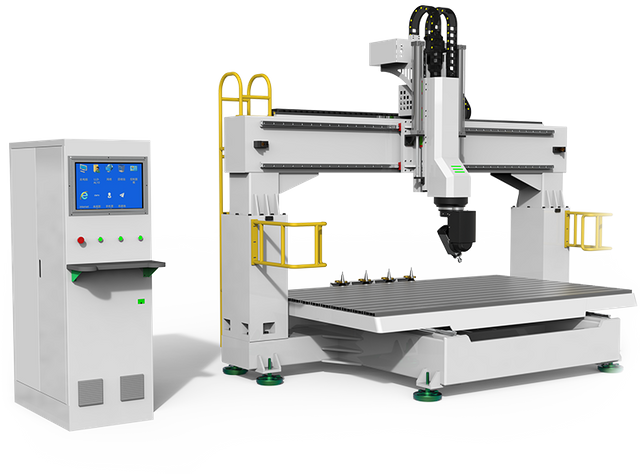

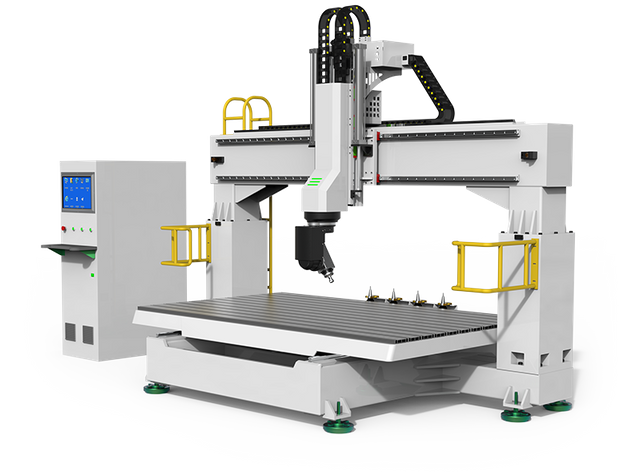

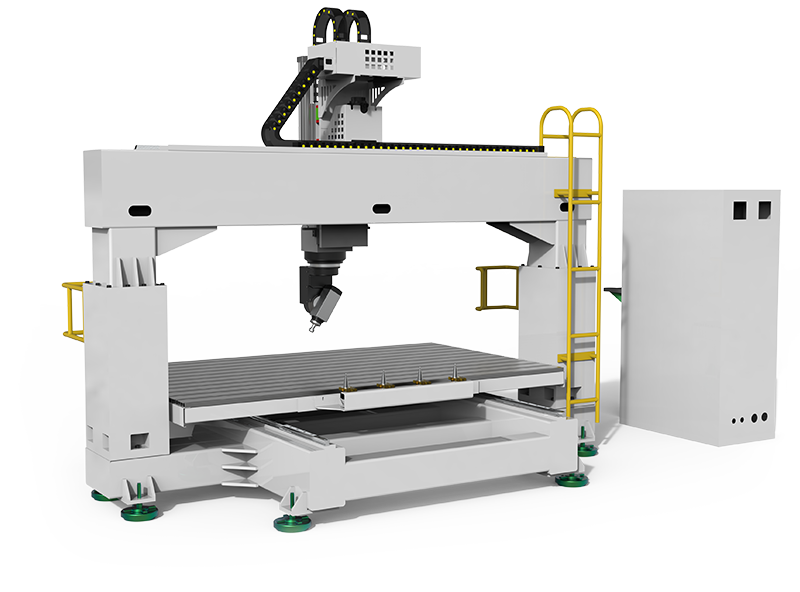

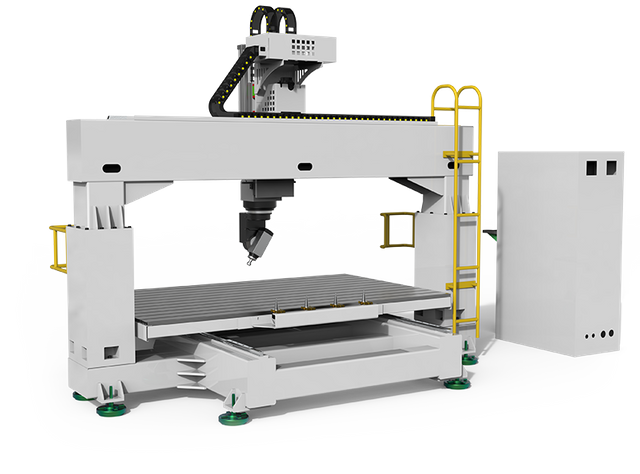

5 axis CNC Router Machine

M o r e    s t a b l e  ,   m o r e    e f f i c i e n t

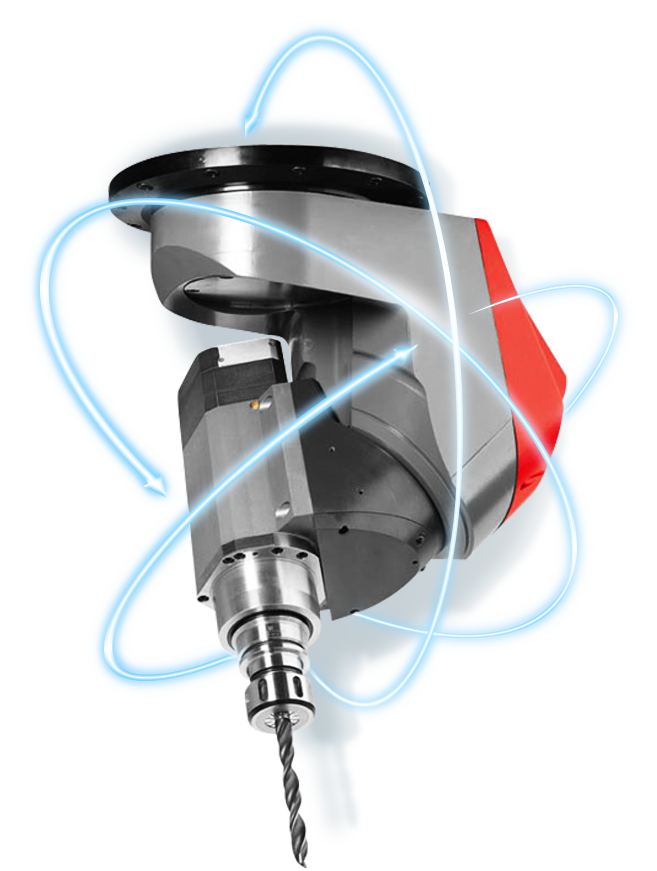

Real 5D processing

X,Y,Z,B,C 5 axis linkage, truly realize three-dimensional machining. Maximum angle attainable ±320° .It is suitable for metal, wood, foam,plastic and other materials processing, widely used in  mold industry.



Extreme machining stiffness thanks to the tilting B axis that generates minimum torque on the rotating axes
Maximum coverage of the machining areas
Possibility of tilting up to -10° for machining undercut

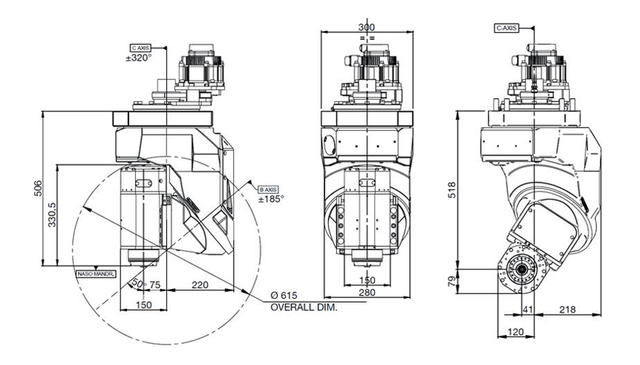

Wide rotation of axis C ± 320° (opt: continuous rotation)  All the spindle from Italy HSD or HITECO

SYNTEC / LNC / OSAI smart control system

5 axis control system with RTCP(Real-Time Tool Center Point Rotatio) function. It greatly improves the machining accuracy and reduces the design difficulty.
MPG is standard configuration





Perfect compatibility with world mainstream design software

SolidWorks / UG / AlphaCAM all can be used as the design software for this machine.Choose one you are familiar with


Servo motor is standard configuration

YASKAWA/Fuji/DELTA/Leadshine servo motor multi options. Ensure high precision and stable operation of the machine

World's top quality rails and gear rack

HIWIN/THK/YYC rail and rack are available. Precision helical gear racks on the
X and Y axes. which ensure a high working speed.The precision gearbox is directly coupled to the Servo motor and pinion. This eliminates belt stretch inaccuracies assuring high-speed machining while the system positions the spindle accurately.

Tool sensor makes processing accuracy higher

Automatic tool calibration pad is designed for easily and accurately recording of tool length

Vacuum table makes materials more secure

vacuum plenum table surface which is very easy for fixing the materials on the table;Zones can be turned off easily via control valves on the front of the machine. Gasketing can also be routed to accommodate various material sizes and styles.
TECHNICAL
PARAMETERS
  • mm
      Moel No.   LR-1212 5Ex   LR-1224 5Ex
      Traveling size   1720*1820*750mm   1720*3040*750mm
      Working size   1220*1220*500mm   1220*2440*500mm
      Table size   1230*1220mm   1230*2440mm
      B/C Axis   B:±185°     C:±320°
      Max positioning speed   B:10000°/'     C:11500°/'
      Max work speed   B:4500°/'     C:5500°/'
      Axes positioning precision   1 arcmin
      Transmission   X/Y Rack and Pinion Drive, Z Ball Screw Drive
      Spindle Power   7.5/12KW(HSD/HITECO)
      Traveling Speed   60/60/20 m/min
      Working Speed   20 m/min
      Tool magazine   Carousel 8/12 Slots
      Driving System   Yaskawa
  •   Moel No.   LR-1212 5Ex   LR-1224 5Ex
      Traveling size   67.7*71.6*29.5inch   67.7*119.7*29.5inch
      Working size   48*48*19.7inch   48*96*19.7inch
      Table size   48.4*48inch   48.4*96inch
      B/C Axis   B:±185°     C:±320°
      Max positioning speed   B:10000°/'     C:11500°/'
      Max work speed   B:4500°/'     C:5500°/'
      Axes positioning precision   1 arcmin
      Transmission   X/Y Rack and Pinion Drive, Z Ball Screw Drive
      Spindle Power   7.5/12KW(HSD/HITECO)
      Traveling Speed   196.8/196.8/65.6 ft/min
      Working Speed   65.6 ft/min
      Tool magazine   Carousel 8/12 Slots
      Driving System   Yaskawa
