ST2

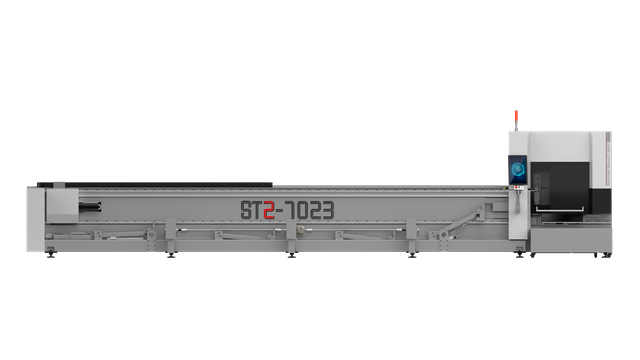

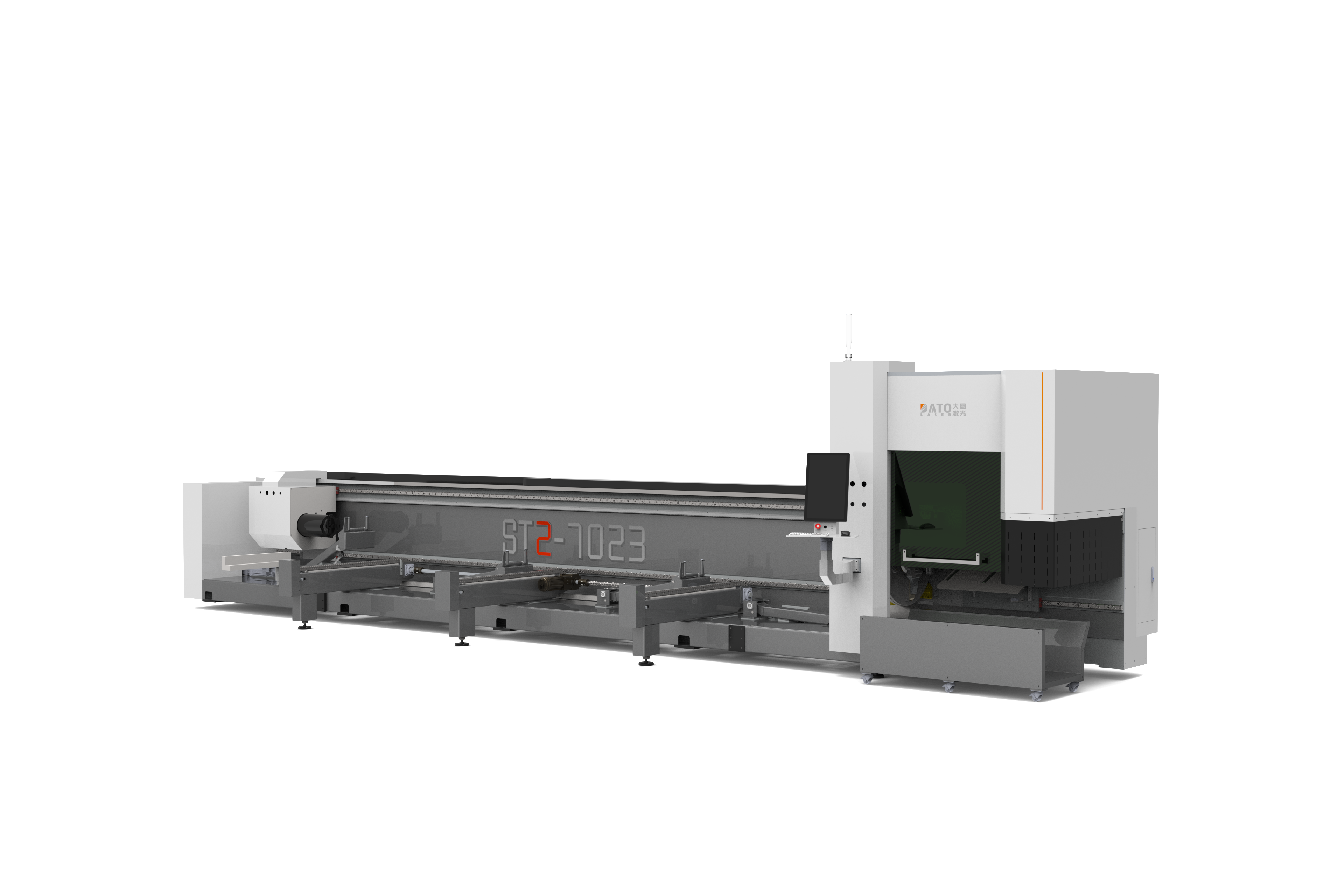

Two Chuck Suspension Automatic Loading Tube Laser Cutting Machine

High efficiency and stability
Extremely short tail material

tube laser cutting machine price

automatic tube cutting machine

automatic tubing cutter

Cutting-Edge Technology

Stay ahead in the industry with the latest in laser equipment innovation.

One-Stop Laser Solutions

From equipment selection to post-purchase support, Leapion is by your side.

Tailored to Your Needs

Whatever your requirements, we offer laser equipment customized just for you.

You are here: Home » Laser Machine » Tube fiber laser cutting machine » LF-ST2

Leapion Laser Tube Cutting Machine Product Description

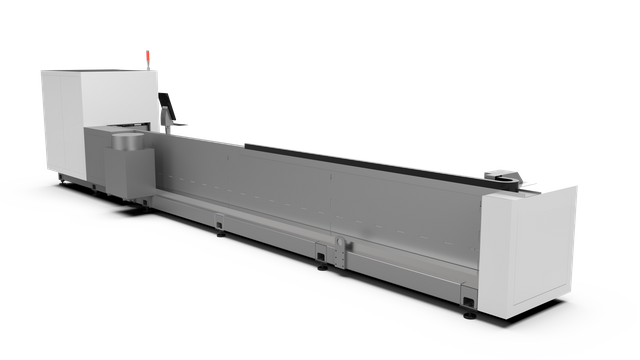

Side-mounted bed structure

Side-Mounted Bed Structure

High rigidity frame shows more dynamic performance.
Smooth operation and no vibration during high-speed cutting.

Front Card Side Shift Design

Front card mobile front chuck design, tail material can reach 50mm.
For the cutting conditions of longer finished pipes, the pipe support force is more reasonable and the clamping is more stable.
Compared with traditional cutting methods, cutting accuracy and quality are more guaranteed.

crop_1719373327704

Servo follower

Servo Follower

Sets a centering mechanism, top material correction, automatic centering, freeing hands.

Adopts four sets of servo follower devices.

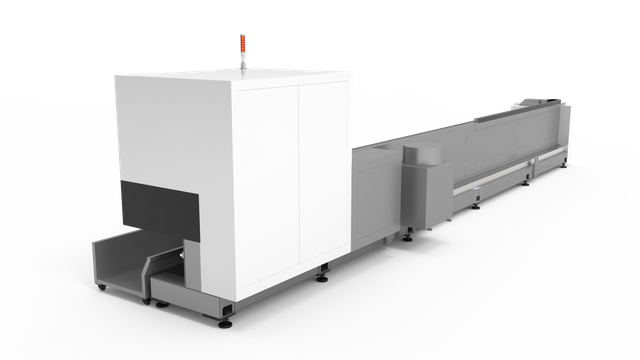

Translation Feeding Mechanism

Realizes fast feeding of pipes, stable lifting, and automatic centering.
Batch processing improves work efficiency.

automatic tube cutter

Automatic Tube Cutting Machine Product Specifications

Mode	ST2-7016	ST2-7023
Min Diameter	Φ15mm □15mm	Φ15mm □15mm
Max Diameter	Φ160mm □116mm	Φ230mm □160mm
Laser Power Supply	3000w	6000w
Maximum Acceleration	1G	1G
Positioning Accuracy	±0.03mm	±0.03mm
Voltage	380V 3PH50/60HZ	380V 3PH50/60HZ
No-load speed	60m/min	60m/min
Equipment size	9.7mX2.2mX2.1m	10mX2.5mX2.3m

Tube Laser Cutting Machine Key Features

High-Precision 3D Laser Cutting Head

High-Precision 3D Laser Cutting Head

Leapion's machine employs a Raytools/WSX 3D laser cutting head with advanced optics and fine-tuned adjustments, ensuring unparalleled precision and quality in tube cutting applications.
Advanced Pneumatic Chuck

Advanced Pneumatic Chuck

The pneumatic chuck in Leapion's Small Pipe Cutting Machine utilizes an internal rack and pinion drive for improved accuracy. It forms the centerpiece of the machine, ensuring a secure and precise grip on materials for optimized cutting performance.
Rack and Pinion Drive

Rack and Pinion Drive

The rack and pinion drive offers the agility needed for fast, high-quality cuts. Specifically designed for small pipe cutting, this core component dramatically improves both speed and efficiency in the cutting process.
High-Efficiency Fiber Laser Source

High-Efficiency Fiber Laser Source

Leapion's Small Pipe Cutting Machine is equipped with a standard MAX2000W laser for top-tier precision in tube cutting. We also offer laser options from long-term partners IPG and Raycus for added flexibility.
User-Friendly Control Panel

User-Friendly Control Panel

The intuitive control panel simplifies operation without sacrificing performance. With customizable settings, it offers unparalleled control for a wide range of cutting applications.
Eco-Friendly and Energy-Efficient

Eco-Friendly and Energy-Efficient

Leapion's Small Pipe Cutting Machine features energy-efficient laser technology that minimizes power consumption, making it an eco-friendly choice without sacrificing performance.

Laser Cutting Machine Tube Showcase

Stainless Steel Tube
Carbon Steel Pipe
Aluminum Tube
Carbon Steel Pipe
Carbon Steel Square Tube

Voices From User

We've been using Leapion's laser cutting machine for a few months now and the difference in quality is night and day. The machine's features, especially the Automatic Support Bracket, have made our long pipe projects a breeze.

Raj Patel
Leapion's laser cutting machine has been a game-changer for our business. The Automatic Clamping feature saves us so much time and the cuts are incredibly precise. Highly recommended!

Alex Johnson
The Intelligent Shape Identification on Leapion's machine is unlike anything we've used before. It's made our workflow much more efficient and the results speak for themselves.

Maria González

Why Choose Leapion ?

Technical Guidance

Leapion machines come with a 3-year warranty, 24/7 online technical guidance. and comprehensive pre-sales sales and after-sales services to provide you with the best
shopping and using experience.

Exhibitions

Become the agent of Leapion company, we will provide you with comprehensive support, including helping you hold local exhibitions to attract more customers to come and buy your machines.

7% Discount

We welcome agents who are collaborating with leapion for the first time to purchase any of our products. As a token of appreciation, we are pleased to offer a 7% discount on our services.

Logo & Color

When purchasing Leapion machines, you can customize the logo on just one machine. Additionally, when you order more than five machines. we offer a variety of color customization options for you to choose from.
