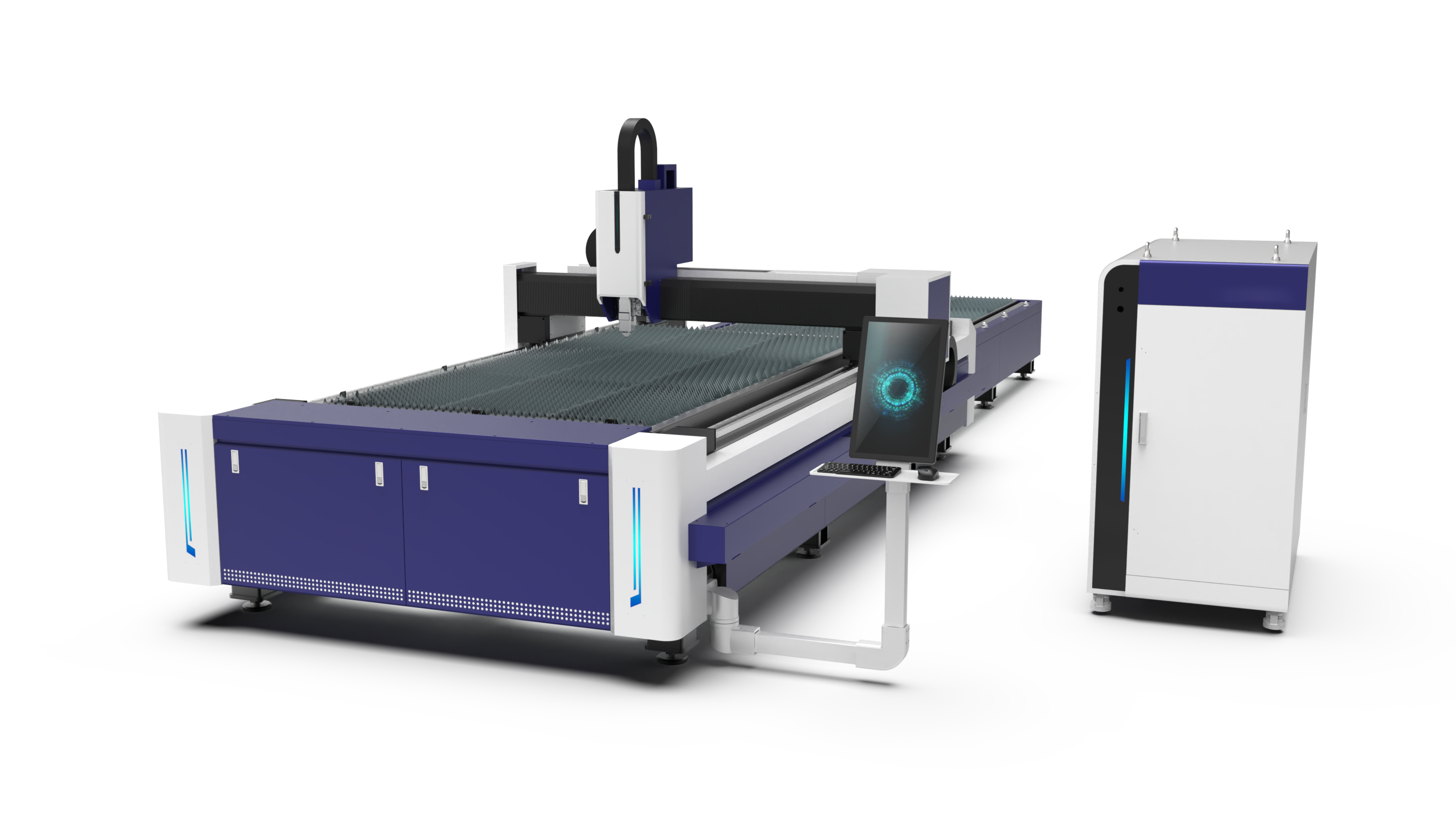

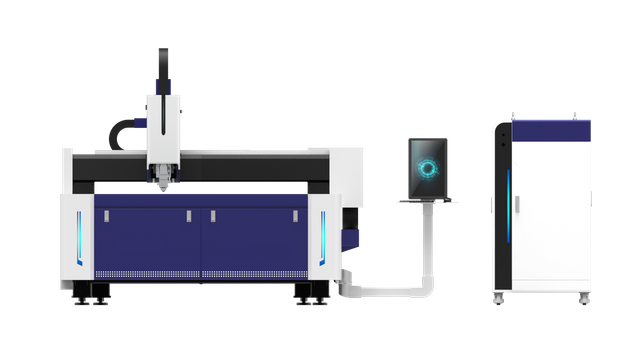

Exchange platform fiber laser cutting machine

  More Heavier more stable machine bed
  Double automatically change worktable
  High processing efficiency and low operating cost
You are here: Home » fiber laser cutting machine » LF-Ex Exchange platform fiber laser cutting machine

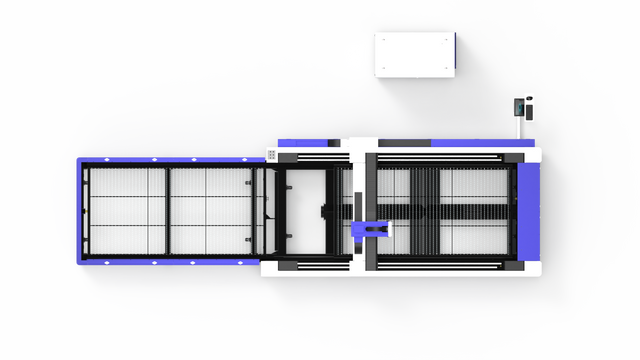

Faster Exchange Speed

Platform exchange is controlled by the system, the pulley and the track are inlaid closely, and the built-in pulley runs smoothly. The 3015 size fastest can achieve a complete exchange of 10S.

Industrial Machine bed
A solid bed has high stability .It is unmatched by other materials and structures. The use of high quality steel as a raw material keeps the precision of the machine tool for a long time and remains unchanged for 50 years.

Steel Gantry

Molded and framed by integral steel mold and die-casting technology, to make the beam obtain the highest strength. Optimizes and reduces the weight improving processing efficiency and processing quality.
Laser Cutting head

Multiple protection

3 pieces of protection lens, highly effective protection of collimating focus lens. 2-way optical water cooling, effectively extending the continuous working time.

Various brands of laser head are available

We can provide all high quality laser heads in.it has been tested by us for a long time. Empower/WSX/PRECITEC all of our long-term partners.



The closed-loop stepping motor is adopted to effectively avoid step loss. The focusing speed is 100 m m / s and the repetition accuracy is 1 μ M. IP65 class dust-proof, patent protection mirror cover plate, dust-proof without dead angle.

MAX/IPG/Raycus, multiple choice
Supply different brands, different power laser source. The higher power, the thicker cutting thickness. Give longest warranty time for laser source.
Control System
Statistic of Production: Thorough and timely statistic of machine production to help you manage the task schedule.
Precise Edge Finding: Support capacitance and photo-electric sensing to find workpiece edge and offset sheet placement angle.
Technical Parameters
  Mode   LF-3015Ex   LF-4020Ex   LF-6020Ex   LF-6025Ex
  Working Area   3000*1500m   4000*2000mm   6000*2000mm   6000*2500mm
  Repeat Repositioning Accuracy   ±0.03mm
  Accuracy of Positioning   ±0.02mm
  X,Y Max linkage Speed   145m/min
  Laser Power   3000W / 4000W / 6000W / 8000W / 12000W
  Laser source supply   MAX / Raycus / IPG
  Maximum acceleration   2G

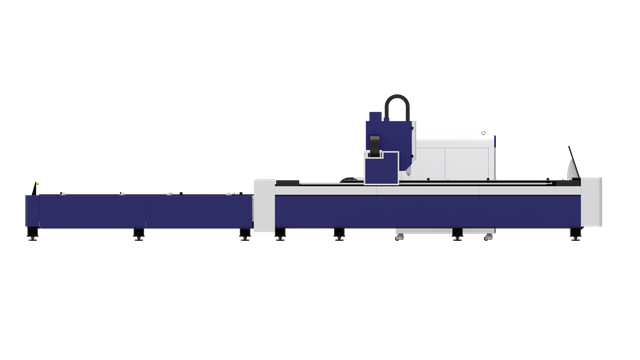

  Upgrade   Tube cutting / Enclosed protection

Application Industry

Metalworking Industry, Locomotive Manufacturing Industry, Machinery Industry, Household Appliance Manufacturing Industry, Hardware Tool Processing Industry, Decorative Advertising Industry and other machinery manufacturing and processing industries.

What Materials Can Be Processed ?

6-12mm carbon steel cutting
8-10mm Brass Cutting
8-10mm aluminum cutting
8-12mm stainless steel cutting
16-22mm carbon steel cutting
2-25mm carbon steel cutting
