T-E2

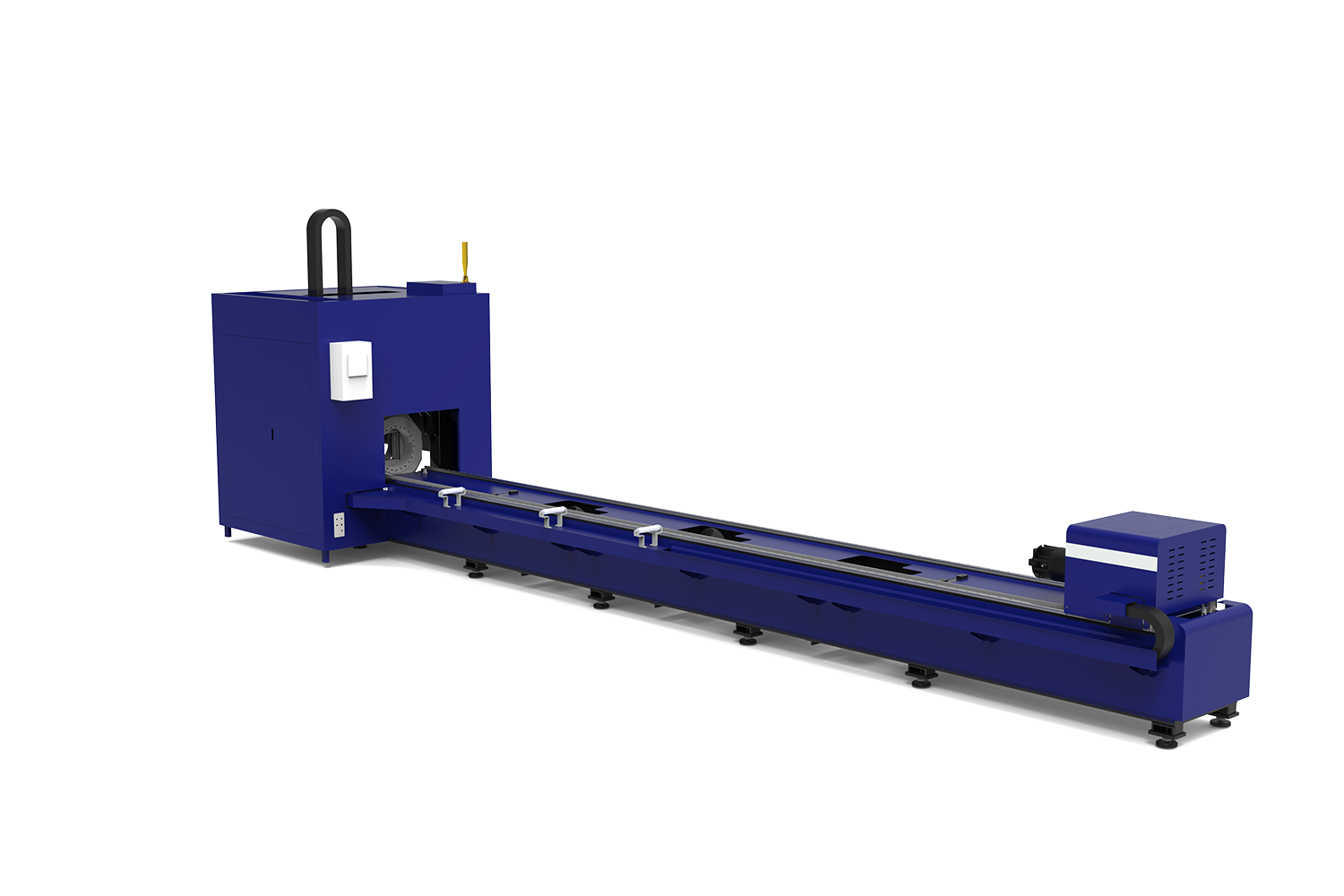

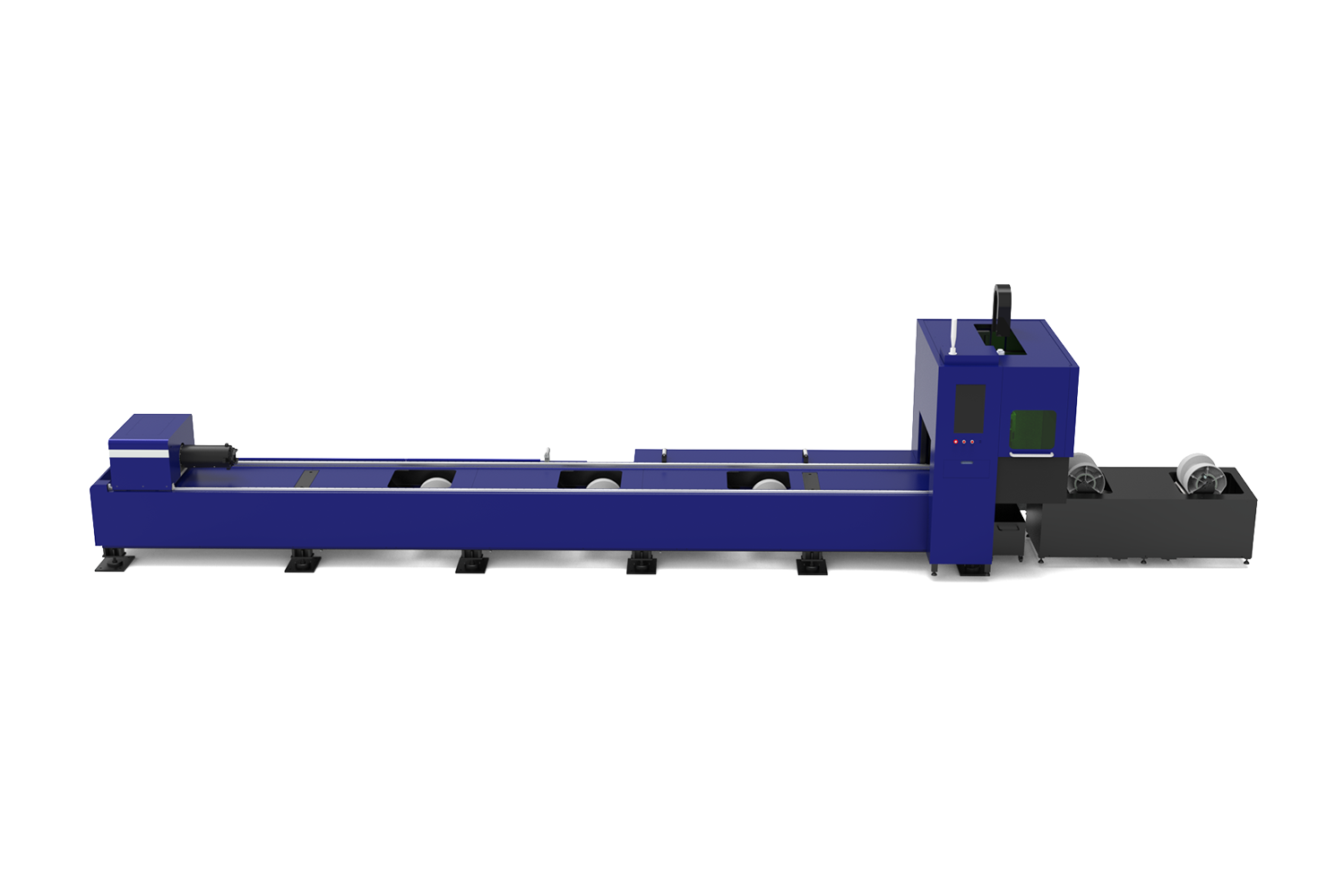

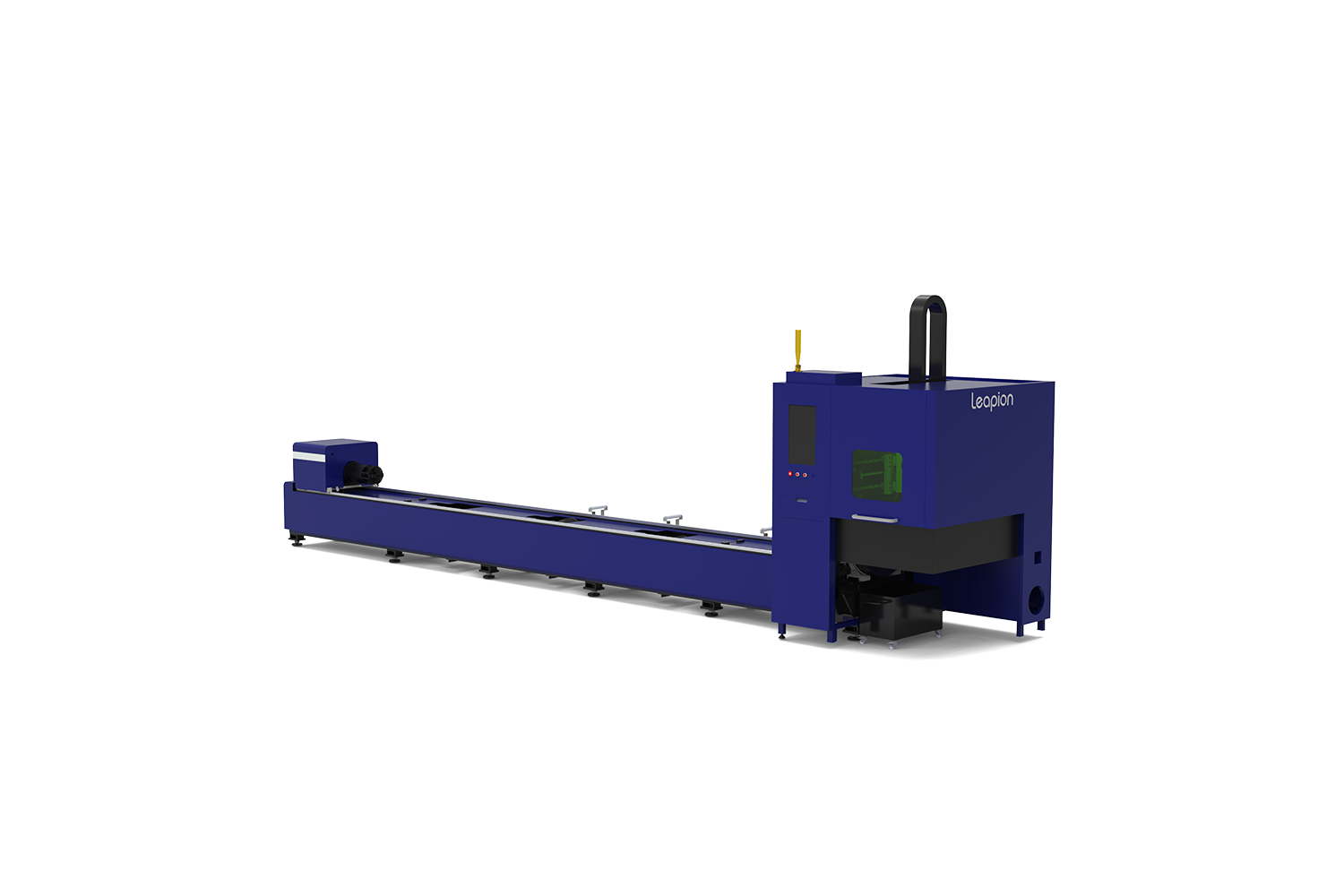

Small Laser Tube Cutting Machine

Fast, Accurate, Cost-Effective

cnc pipe laser cutting machine

cnc pipe laser cutting machine

cnc pipe laser cutting machine

Cutting-Edge Technology

Stay ahead in the industry with the latest in laser equipment innovation.

One-Stop Laser Solutions

From equipment selection to post-purchase support, Leapion is by your side.

Tailored to Your Needs

Whatever your requirements, we offer laser equipment customized just for you.

You are here: Home » Laser Machine » Tube fiber laser cutting machine » LF-MT Compact Laser Tube Cutting Machine

CNC Laser Pipe Cutting: Precision Cutting with Smart Recognition

tube laser processing

Versatile Shape Identification: Automatically recognizes standard and special-shaped pipes, including round, oval, square, and more, eliminating manual configuration.

Non-Inductive Detection: Employs continuous, high-efficiency detection without human intervention, streamlining operations and boosting productivity.

Exceptional Precision: Guarantees cutting accuracy with a position deviation within 0.15mm over the entire meter section, ensuring consistency and quality in every cut.

Automatic Support

Leapion's Small Pipe Cutting Machine features an advanced automatic support system, ensuring stability and precision during the cutting process. This component plays a vital role in maintaining the alignment of the pipes, ensuring that the cuts are clean, accurate, and consistent regardless of the length or diameter of the material.

Precision and Consistency

With high-quality construction and advanced technology, the machine ensures the highest level of precision and consistency with every cut.

fiber pipe laser cutter

Leapion Laser Tube Cutter Video Presentation

01. Precise Internal Transmission Structure

The Small Tube Laser Cutting Machine from Leapion utilizes advanced rack and pinion drive technology, ensuring a high level of precision in its internal transmission structure. This intricate internal design not only improves cutting accuracy but also enhances the operational stability of the equipment.
02. Specifically Designed for Cutting Small Pipes with Flexible Rotation Capabilities

Specifically designed for cutting small pipes, the machine offers extreme rotational flexibility. This allows the equipment to easily meet a variety of complex cutting demands, fulfilling your high standards whether you require fast or efficient cutting.
03. Smaller Overall Footprint, Cost-Effective and Easy to Install

With a smaller overall footprint, the Small Laser Tube Cutting Machine is easy to install even in limited spaces. This not only saves space but also reduces costs. Its simple installation process further adds to the cost-effectiveness of the equipment.

Tube Laser Machine Technical Parameters

Mode	T-6011E2	T-6016E2
Min Diameter	Φ10mm □10mm	Φ20mm □20mm
Max Diameter	Φ110mm □110mm	Φ110mm □110mm
Laser Power Supply	1500w,2000w
Maximum Acceleration	1G
Positioning Accuracy	±0.03mm
Voltage	380V 3PH50/60HZ
Chuck Speed	80r/min
Upgrade	Air Conditioner, Smoke Puriher, Air Compressor, Voltage Regulator, Satety Light Curtain

If you're unsure about which model of laser tube machine to choose, please contact us.

Small Tube Fiber Laser Cutting Machine Key Features

High-Precision 3D Laser Cutting Head

High-Precision 3D Laser Cutting Head

Leapion's machine employs a Raytools/WSX 3D laser cutting head with advanced optics and fine-tuned adjustments, ensuring unparalleled precision and quality in tube cutting applications.
Advanced Pneumatic Chuck

Advanced Pneumatic Chuck

The pneumatic chuck in Leapion's Small Pipe Cutting Machine utilizes an internal rack and pinion drive for improved accuracy. It forms the centerpiece of the machine, ensuring a secure and precise grip on materials for optimized cutting performance.
Rack and Pinion Drive

Rack and Pinion Drive

The rack and pinion drive offers the agility needed for fast, high-quality cuts. Specifically designed for small pipe cutting, this core component dramatically improves both speed and efficiency in the cutting process.
High-Efficiency Fiber Laser Source

High-Efficiency Fiber Laser Source

Leapion's Small Pipe Cutting Machine is equipped with a standard MAX2000W laser for top-tier precision in tube cutting. We also offer laser options from long-term partners IPG and Raycus for added flexibility.
User-Friendly Control Panel

User-Friendly Control Panel

The intuitive control panel simplifies operation without sacrificing performance. With customizable settings, it offers unparalleled control for a wide range of cutting applications.
Eco-Friendly and Energy-Efficient

Eco-Friendly and Energy-Efficient

Leapion's Small Pipe Cutting Machine features energy-efficient laser technology that minimizes power consumption, making it an eco-friendly choice without sacrificing performance.

Tube Cutting Machine Body

Our machine body is crafted from national standard square tubes and undergoes a rigorous 600℃ high-temperature heat treatment for enhanced durability. After precision finishing with a 12-meter gantry milling, it's cooled inside an oven for 24 hours. This meticulous process ensures the machine remains deformation-free for up to 30 years, guaranteeing its enduring accuracy.

small tube laser cutting machine

Laser Cutting Machine Tube Showcase

Stainless Steel Tube
Carbon Steel Pipe
Aluminum Tube
Carbon Steel Pipe
Carbon Steel Square Tube
