Technology upgraded
The fourth generation dual purpose laser head Handheld and automatic 2D laser head. Easy to hold and integrate with automation; Easy to operate and has various functions.
Simple software prestore of various parameter graphics
1. Simple software, select prestored parameters directly 2.Prestore all kinds of parameter graphics,six kinds of graphics can be selected:straight line/spiral/circle/rectangle/rectangle flling/Circle flling 3. Easy to use and operate 4. Simple interface 5.12 different modes can be switched and selected quickly to facilitate production and debugging 6.The language can be English/Chinese or other languages(if required)
Scannable graphics
Can scan a variety of graphics to solve the problems encountered
Environmental Friendly

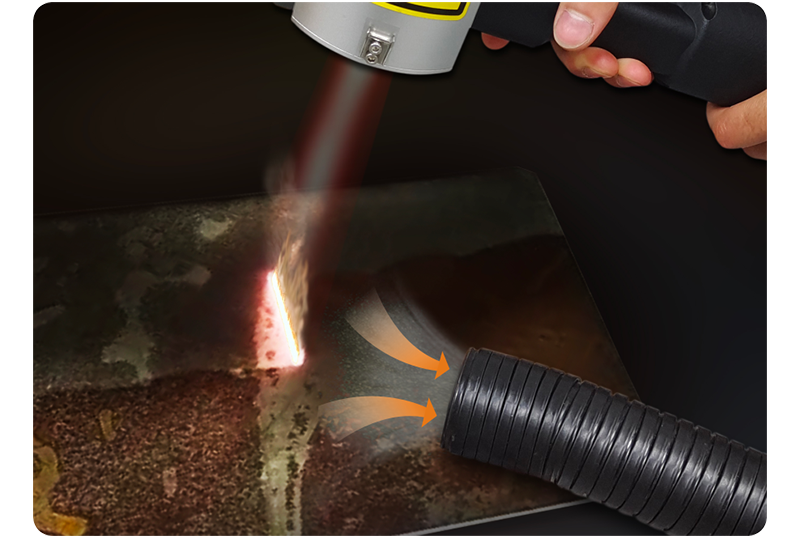

Environmental Friendly The most environmentally friendly industrial cleaning method, Portable dust auxiliary treatment system(optional).
HIGH QUALITY PARTS

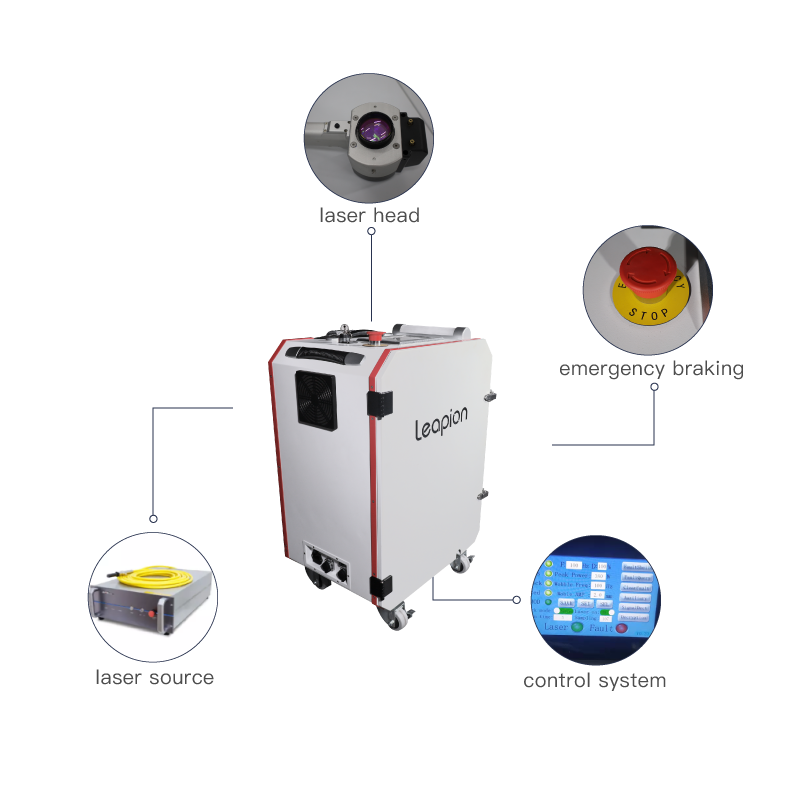

Stable and efficient imported / domestic famous brands (RAYCUS or IPG /Siemens/Weichuang,etc. )accessories and components are adopted to ensure the stable and reliable operation of the equipment.Easy to operate,complete and diverse functions.
Technical Parameters
Mode
LCL-100W
LCL-200W
LCL-300W
Operating mode
Handheld /Automated
Scan width
200*100mm
Supply voltage
220V
System power consumption
<120W
Operating environment temperature range
-10--40℃
Working environment humidity range
<80%
Maximum scan speed
Max 20m/s
Light transmittance
≥98%
Cleaning head weight
＜1.2kg
Cable length
Standard 10 meters
Application Industry
Rail transit, aerospace, marine ships, mold products, automobile manufacturing, food industry and other machinery manufacturing and processing industries
