Laser cutting machine
 LCL

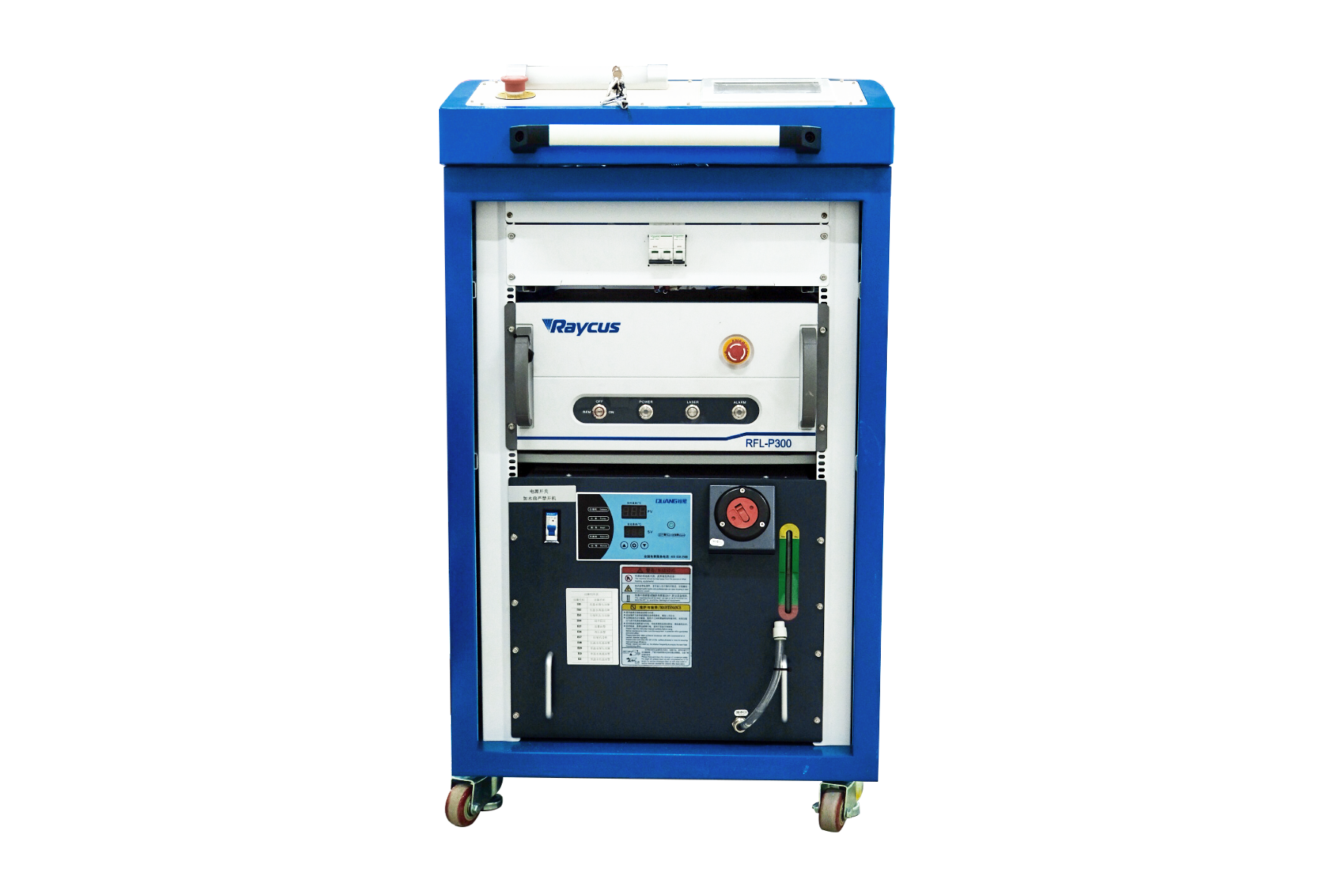

Fiber Laser Cleaning Machine

M o r e    s t a b l e  ,   m o r e    e f f i c i e n t

SHEYING2

Live video recording
Misappropriation will be investigated

Metal surface cleaning

LCL laser cleaning machine which causes the surface dirt, rust or coating to evaporate or peel off, and effectively removes the surface adhering or surface coating of the cleaning object at high speed。without chemical reagent, medium and water washing



Efficient and accurate

Accurate positioning, no damage to materials: Laser cleaning machine can clean very sensitive material surfaces such as aluminum, carbon, stainless, carbon fiber reinforced polymer or coated material, without damaging the materials. Or laser work on the material surface to make it be roughened to increase the strength of the bond.

Environment friendly

No chemical reagent, no medium, no water cleaning.the cost of laser cleaning is only 1/5 of that of chemical cleaning.

Hand-held laser cleaning head

The hand-held structure is simple and light. Easy to operate, detachable flexible front end, can also be used with manipulator and auto focus.

TECHNICAL
PARAMETERS
  • mm
      Moel No.   LCL-100W   LCL-200W   LCL-300W   LCL-500W
      Laser source   Average laser   100W   200W   300W   500W
      Wavelength   1064±5nm
      Pulse-Frequency   10-50KHz   10-50KHz   10-50KHz   10-50KHz
      Cable length   3m   5m   5m   10m
      Cooling way   Air cooling   Water cooling

      Laser head

      Scanning width   10-100nm
      Speed   1000-8000mm/s
      Weight   3Kg
      Total power   1000W   2700W   3900W   4700W
      Weight   125Kg   200Kg   200Kg   240Kg
      Packing size   65*96*72cm   63*100*109cm   63*100*109cm   63*100*109cm
      Operate voltage   Single phase 220v/50-60Hz
  •   Moel No.   LCL-100W   LCL-200W   LCL-300W   LCL-500W
      Laser source   Average laser   100W   200W   300W   500W
      Wavelength   0.04mil
      Pulse-Frequency   10-50KHz   10-50KHz   10-50KHz   10-50KHz
      Cable length   118inch   197inch   197inch   394inch
      Cooling way   Air cooling   Water cooling

      Laser head

      Scanning width   0.0004-0.004mil
      Speed   39.4-315inch/s
      Weight   3Kg
      Total power   1000W   2700W   3900W   4700W
      Weight   125Kg   200Kg   200Kg   240Kg
      Packing size   25.6*37.8*28in   24.8*39.4*43in   24.8*39.4*43in   24.8*39.4*43in
      Operate voltage   Single phase 220v/50-60Hz
What materials can be processed ?
Welding sample
Welding sample
Welding sample
Welding sample
