Welding is a critical skill in many industries and requires a deep understanding of the techniques and terminology involved. For those new to the field, the vast array of welding terms can seem overwhelming. Yet, mastering these terms is essential for anyone who wants to become proficient in welding. This article will introduce you to 100 key welding terms. By becoming familiar with these welding terminology, you will build a solid foundation to support your growth and success in the welding industry.
MIG Welding (Metal Inert Gas): A welding process using a continuously fed wire and shielding gas.
TIG Welding (Tungsten Inert Gas): Welding with a tungsten electrode and inert gas.
Stick Welding (Shielded Metal Arc Welding - SMAW): Uses a consumable electrode coated in flux.
Flux-Cored Arc Welding (FCAW): Similar to MIG but uses a flux-filled wire.

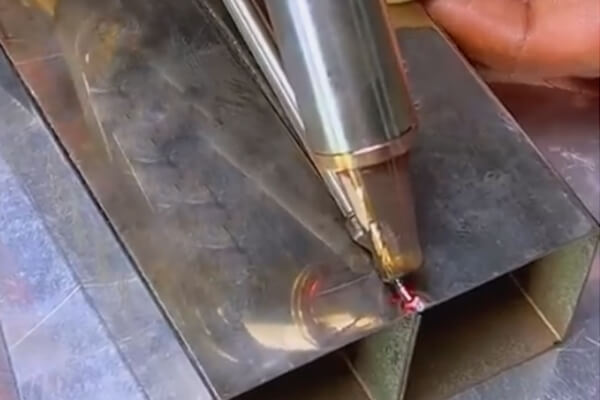

Laser Welding: Uses a focused laser beam for precise welding.
Plasma Arc Welding (PAW): Uses a plasma torch for high-precision welding.
Electron Beam Welding (EBW): High-energy electrons produce heat for welding.
Gas Welding: Involves burning gas, usually oxy-acetylene, to produce the weld.
Spot Welding: Joins two metal sheets together at discrete points.
Seam Welding: Continuous welding along a joint.
Submerged Arc Welding (SAW): Weld area submerged under a blanket of flux.
Friction Welding: Uses mechanical friction to generate heat for welding.
Ultrasonic Welding: High-frequency ultrasonic vibrations weld thin materials.
Resistance Welding: Joins materials by applying pressure and passing current.
Electroslag Welding (ESW): Vertical welding process using molten slag.
Thermite Welding: Uses exothermic reactions to produce heat for welding.
Percussion Welding: Rapid joining of metals by heat and pressure.
Cold Welding: Joins metals at room temperature without heat.
Projection Welding: Type of resistance welding where heat is localized.
Welding Torch: A tool used to direct the heat source in welding.
Electrode Holder: Holds the electrode in place during welding.
Welding Wire: Consumable metal wire used as a filler in MIG/FCAW.
Welding Helmet: Protective gear for face and eyes.
Welding Gloves: Heat-resistant gloves for protection.
Welding Curtain: Shields the surrounding area from sparks and UV light.
Welding Power Supply: Provides electricity for the welding process.
Gas Regulator: Controls the flow of shielding gas.
Fume Extractor: Removes harmful fumes from the work area.
Welding Positioner: Rotates or positions the workpiece during welding.
Welding Clamps: Holds materials together during welding.
Welding Rod: Filler material for stick welding.
Ground Clamp: Connects the workpiece to the ground.
Welding Cables: Conduct electricity from the power source to the electrode.
Butt Joint: Joining two pieces edge to edge.
Lap Joint: Overlapping two pieces of metal for welding.
T-Joint: Joining two pieces at a 90-degree angle.
Corner Joint: Welding two pieces at a corner.
Edge Joint: Welding two pieces along their edges.
Weave Bead: A wider weld bead made by weaving the electrode.
Stringer Bead: A narrow weld bead made by moving the electrode straight.
Backhand Welding: Welding with the torch pointing towards the weld pool.
Forehand Welding: Welding with the torch pointing away from the weld pool.
Tack Weld: A temporary weld to hold parts in place.
Stitch Welding: Intermittent welds along a joint.
Overlay Welding: Adding a layer of weld metal to a surface.
Plug Welding: Filling holes in one piece of metal to join it to another.
Slot Welding: Similar to plug welding but in elongated slots.
Pulsed Welding: Alternating between high and low currents during welding.
Base Metal: The primary material being welded.
Filler Metal: Metal added to the joint during welding.
Shielding Gas: Gas used to protect the weld pool from contamination.
Flux: Material that helps prevent oxidation during welding.
Weld Pool: The molten metal formed during welding.
Weld Metal: The metal that forms the weld after solidification.
Slag: Byproduct of welding that forms on the weld surface.
Alloy: A mixture of two or more metals.
Heat-Affected Zone (HAZ): Area of base metal affected by heat but not melted.
Weld Nugget: The weld metal in resistance welding.
Weld Penetration: The depth to which the weld metal fuses with the base metal.
Inert Gas: Non-reactive gas used in shielding, like argon or helium.
Porosity: Small holes or voids in the weld caused by trapped gas.
Cracking: Breaks in the weld metal or base metal.
Undercut: A groove melted into the base metal next to the weld.
Lack of Fusion: Incomplete joining of the weld metal and base metal.
Incomplete Penetration: Weld metal does not extend through the joint thickness.
Spatter: Small droplets of molten metal scattered around the weld.
Warping: Distortion of the workpiece due to uneven heating.
Overlap: When weld metal flows over the base metal without bonding.
Burn-Through: Excessive penetration, causing a hole in the base metal.
Cold Lap: Poor fusion between weld metal and base metal.
Arc Eye: Eye injury caused by exposure to ultraviolet light from welding.
Burns: Injuries caused by exposure to heat or sparks.
Fire Hazard: Risk of fire due to sparks and hot materials.
Electric Shock: Risk of shock from welding equipment.
Ventilation: Ensuring proper air circulation to remove fumes.
Personal Protective Equipment (PPE): Gear to protect against welding hazards.
Heat Stress: Overheating of the body during welding.
Noise Hazard: Risk of hearing damage from loud welding equipment.
Radiation Exposure: Harm from UV and IR radiation emitted during welding.
Confined Space Welding: Risks associated with welding in small, enclosed spaces.
American Welding Society (AWS): Organization setting welding standards in the US.
ISO 9606: International standard for welder qualification testing.
Welding Procedure Specification (WPS): Document detailing the welding process.
Procedure Qualification Record (PQR): Record proving that a welding procedure meets standards.
Certified Welder (CW): A welder who has passed qualification tests.
Welding Inspector: A professional who examines welds for quality.
Non-Destructive Testing (NDT): Inspection methods that do not damage the weld.
Destructive Testing: Testing methods that involve breaking the weld.
Code of Practice: A set of guidelines for safe and effective welding.
Flat Position: Welding on a flat, horizontal surface.
Horizontal Position: Welding on a horizontal axis.
Vertical Position: Welding in a vertical plane.
Overhead Position: Welding from underneath the workpiece.
5G Position: Fixed pipe welding with the pipe horizontal.
6G Position: Fixed pipe welding with the pipe at a 45-degree angle.
1F Position: Flat fillet weld.
2F Position: Horizontal fillet weld.
3F Position: Vertical fillet weld.
4F Position: Overhead fillet weld.
1G Position: Flat groove weld.
Knowing these 100 welding terms is essential for anyone serious about learning and mastering welding. These terms not only describe the processes, equipment, and materials involved, but they also convey the safety practices and quality standards that are essential in this field. Keep this glossary as a reference to guide you through the complexities of welding as you continue to expand your knowledge and skills. Whether you are a beginner or a seasoned professional, knowing these welding terms and definitions will help you approach welding challenges with confidence and accuracy.
