Laser cutting machine
 LF-TT

Loading and Unloding transtower fiber laser cutting machine

M o r e    s t a b l e  ,   m o r e    e f f i c i e n t

You are here: Home » Laser Machine » fiber laser cutting machine » LF-TT Loading and Unloding transtower fiber laser cutting machine

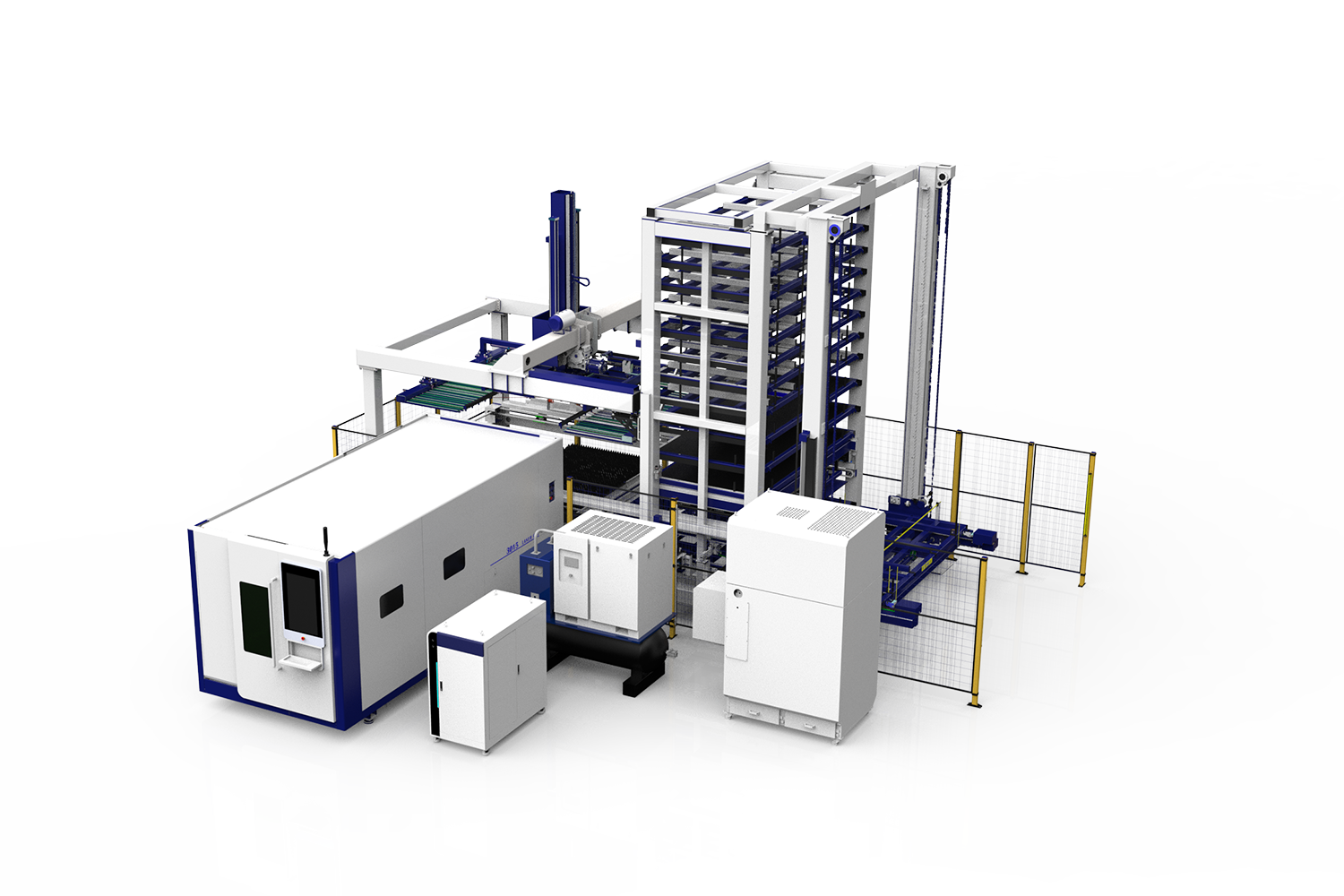

Automatic loading and unloading system


● It is equipped with two sets of raw material pallets and finished material pallets to realize the cost-effectiveness of automatic transfer and return to the warehouse, and meet the needs of medium, large and small varieties of plates.

● The whole line can realize full-automatic intelligent operation to ensure that the production process is unattended

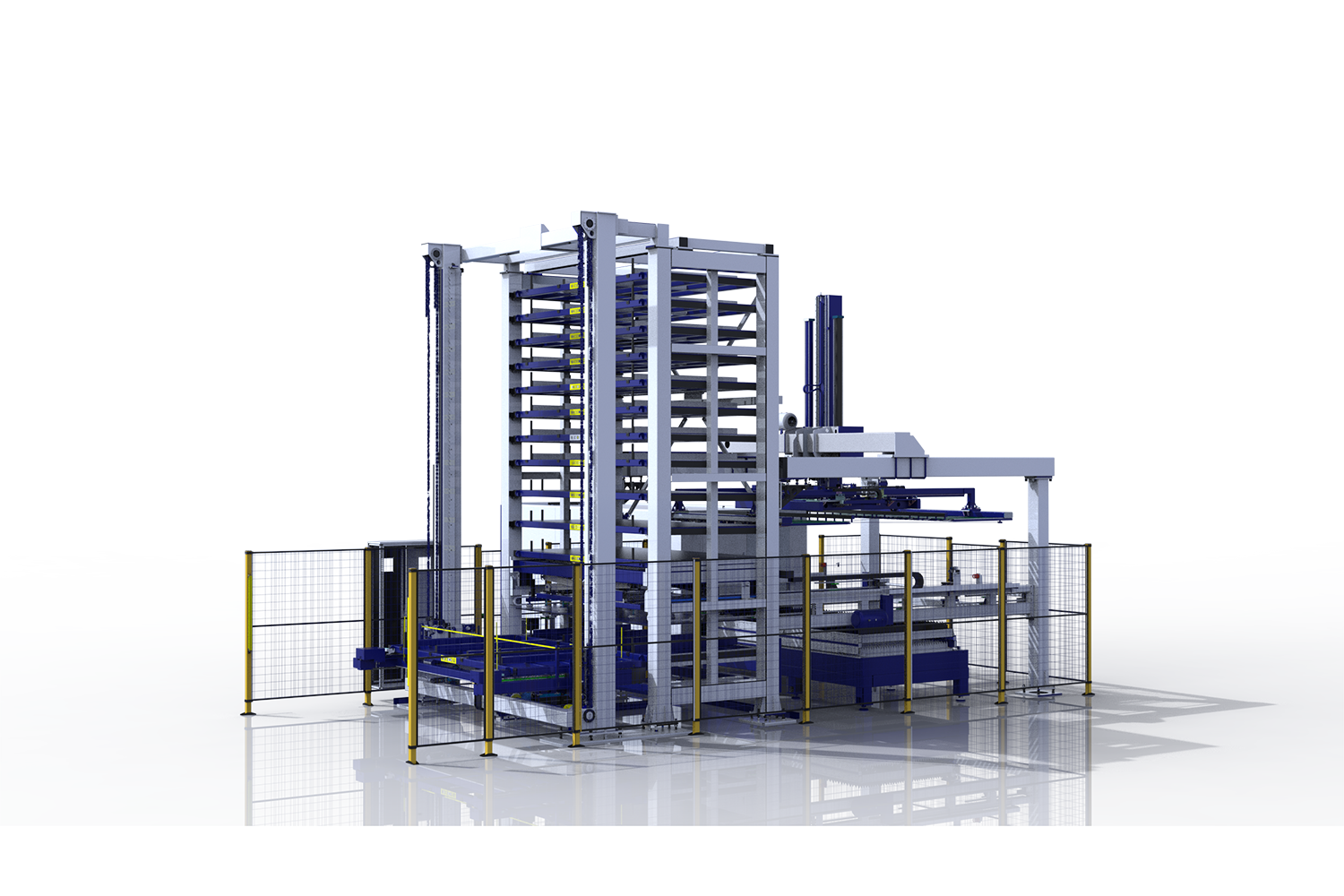

● The storage space of the eight layer cargo space frame meets the storage requirements of various plates and the return function of finished products.

Full protective cover

Environmentlly friendly and safe
Fully enclosed protection design improves the safety of use. Equipped with smoke purification system to avoid environmental pollution and protect the health of operators
More stable
In line with EU and ISO double standard certification, bed weight up to 10 tons,It can make the machine more stable when moving at high speed


Automatic exchange platform system


 Faster

Dual-platform Automatic

Exchanging System. Platform exchange in 10-15 seconds,

 More efficient

Rapid exchange between two platforms greatly improves work efficiency.Platform exchange is controlled by the system



Laser Cutting head RAYTOOLS / WSX / PRECITEC (optional)

Various brands of laser head are available

We can provide all high quality laser heads in.it has been tested by us for a long time. Empower/WSX all of our long-term partners.

High-precision

The closed-loop stepping motor is adopted to effectively avoid step loss. The focusing speed is 100 m m / s and the repetition accuracy is 1 μ M. IP65 class dust-proof, patent protection mirror cover plate, dust-proof without dead angle.

Multiple protection

3 pieces of protection lens, highly effective protection of collimating focus lens. 2-way optical water cooling, effectively extending the continuous working time.

Efficient Water Cooling
Highly Dust-proof

Industrial Machine bed

Casting iron bed

Flake graphite cast iron, the lowest tensile strength

of which is 200MPa. High carbon content, high compressive strength and high hardness. Strong shock absorption and wear resistance. Low thermal sensitivity and bed gap sensitivity reduce the loss of equipment in using.

Lifetime service

It ensures the accuracy of the machine working for a long time, and it will not deform during its lifetime use.

Higher precision

Casting iron body has high stability .It is unmatched by other materials and structures. The use of graphite cast iron as a raw material keeps the precision of the machine tool for a long time and remains unchanged for 50 years. The rough, fine and super-fine of the imported gantry machining center guarantee the machining accuracy requirements of the machine body.

Cast aluminum beam
Monolithic cast aluminum beam,light weight, high strength, no deformation. Molded and framed by integral steel mold and die-casting technology, light crossbeam make equipment a high operation speed, improving processing efficiency and processing quality.
High speed
The light crossbeam can ensure the machine have high moving speed and improve the processing efficiency.
More efficient
The aluminum profile beam of the aerospace industry makes the equipment have efficient dynamic performance, greatly improving processing efficiency while ensuring processing quality.



TECHNICAL
PARAMETERS
  • mm
      Moel No.   LF-3015TT   LF-4020TT   LF-6020TT   LF-6025TT   LF-8025TT
      Working Area   3000*1500mm   4000*2000mm   6100*2000mm   6100*2500mm   8100*2500mm
      Laser output power   1000W /1500W / 2000W / 3000W / 4000W / 6000W / 8000W / 12000W
      Repeated repositioning accuracy   ±0.03mm
      positioning accuracy   ±0.02mm
      Maximum speed   140m/min
      Maximum acceleration   1.2G
  •   Moel No.   LF-3015TT   LF-4020TT   LF-6020TT   LF-6025TT   LF-8025TT
      Working Area   118*59in   157*79in   240*79in   240*98in   319*98in
      Laser output power   1000W /1500W / 2000W / 3000W / 4000W / 6000W / 8000W / 12000W
      Repeated repositioning accuracy   ±0.001in
      positioning accuracy   ±0.0008in
      Maximum speed   5512in/min
      Maximum acceleration   1.2G
How does the laser machine process ?

4-application 4-cut 4-engrave 4-marke 4-weld
MATERIALS CUT ENGRAVE MARK WELD
  Stainless steel
  Carbon steel
  Aluminum
  Copper
  Galvanized sheet
  Gold
  Silver
  Nickel plate
  Manganese plate
What materials can be processed ?
UPGRADES

Fiber laser cutter machine upgrades  , makes your machine more powerful
Smoke purifier

Remove the dust and smoke generated during laser processing to protect the environment and human health
Air compressor

It integrates air compressor, dryer and air storage tank. It has small volume and low noise
BECKHOFF control system

Best control system for high-power laser machines, Beckhoff, Germany
