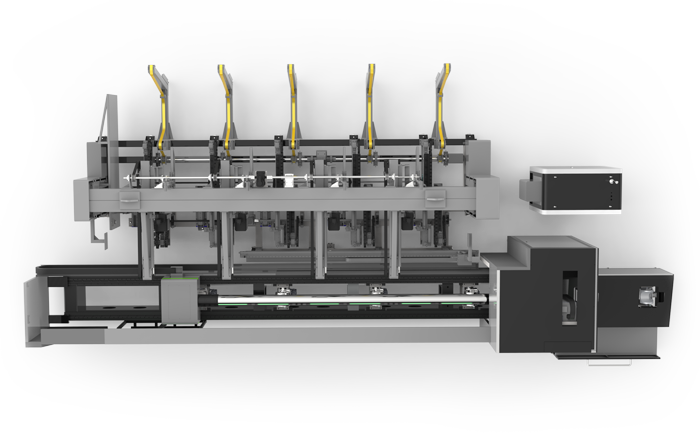

Automatic loading system
Automatic material loading and unloading device is controlled using a numerical control system to feeding the pipes these pipes can be intelligently divided, loaded and connected seamlessly with the pipe cutter to ensure that only one pipe is transported to the delivery arm at a time. This decreases the cost of manually delivery materials
Tube cutting capacity
Various types of tubes can be cut. Cutting diameter: round and square tube 20-240mm;
The running speed is 140m/min, and the working idle speed is 170r/min, which is efficient and time-saving.
Intelligent recognition
With contour recognition system, it can automatically identify standard round, oval, square and other special-shaped pipes.
Tubes realize non-inductive and high-efficiency detection, and realize the position deviation of the whole meter section’s cutting accuracy within 0.15mm.

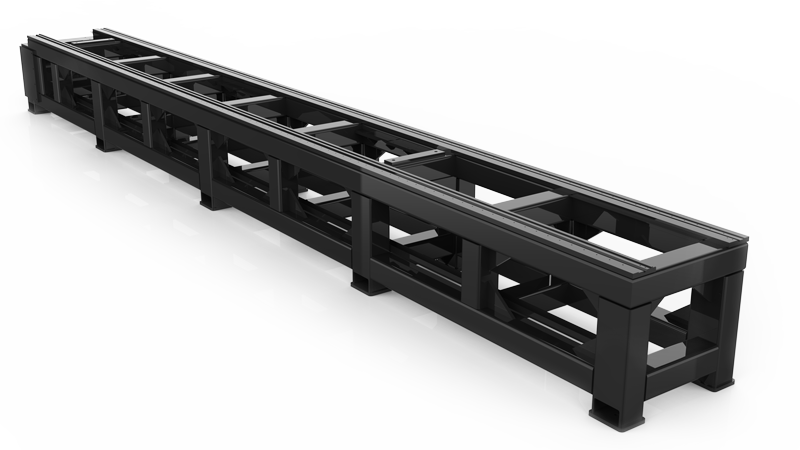

Machine Body
Adopts national standard square tube, 600 ℃ high-temperature heat treatment, 12 meters gantry milling with finishing, 24 hours cooling inside oven ensuring the long-term use of the machine without deform hence the accuracy of the machine is guaranteed.

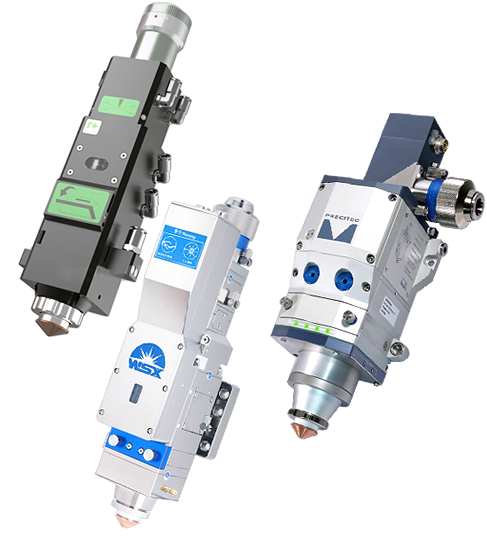

Laser Cutting head
RAYTOOLS / WSX / PRECITEC
Multiple protection
3 pieces of protection lens, highly effective protection of collimating focus lens. 2-way optical water cooling, effectively extending the continuous working time.
Various brands of laser head are available
We can provide all high quality laser heads in.it has been tested by us for a long time. Empower/WSX/PRECITEC all of our long-term partners.
High-precision
The closed-loop stepping motor is adopted to effectively avoid step loss. The focusing speed is 100 m m / s and the repetition accuracy is 1 μ M. IP65 class dust-proof, patent protection mirror cover plate, dust-proof without dead angle.

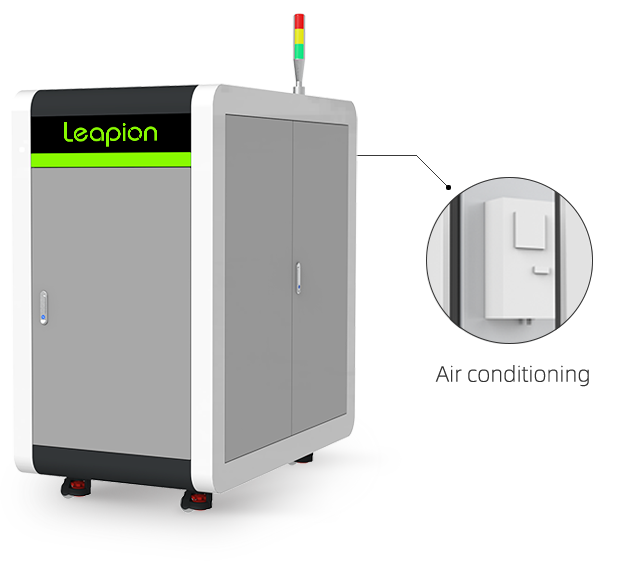

Independent Control Cabinet
Dust-proof All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.
Automatic Thermostat The control cabinet is equipped with air conditioner for automatic constant temperature. This can prevent excessive temperature damage to components in summer.
Control System
High-end intelligent system, stable and reliable, easy to use, rich in functions, suitable for various processing occasions.
It supports modular, personalized, automated, and informatized solu tions.
Transmission and Precision
LEAPION fiber laser cutting machine is equipped with Japanese Yaskawa motor, Japan Shimpo reducer and Taiwan YYC rack. The positioning accuracy of the machine tool can be 0.02mm.

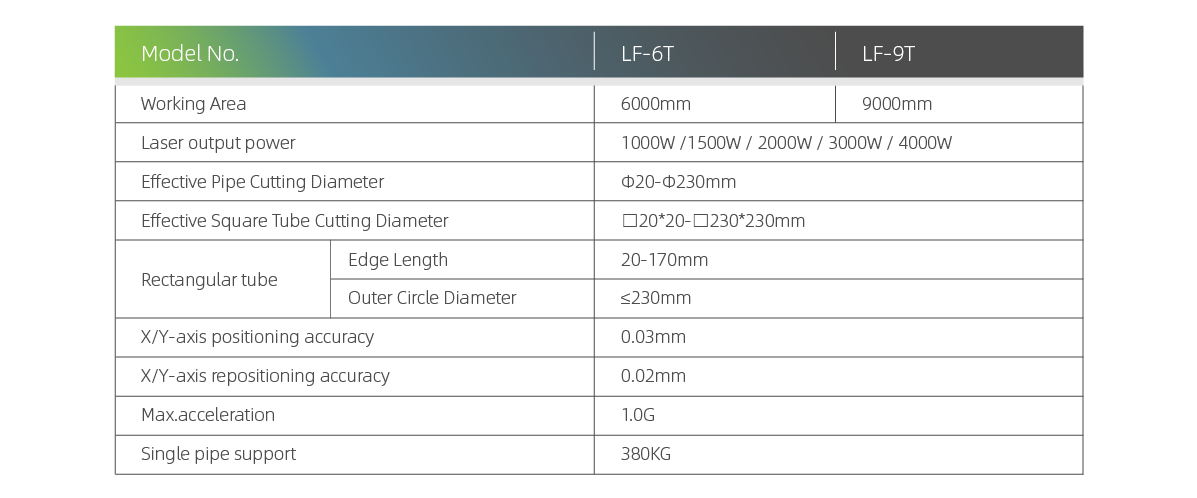

Technical Parameters
Application Industry

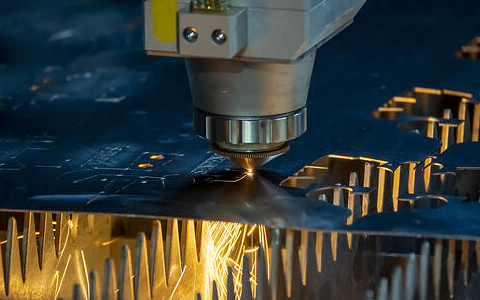

Metal cutting, locomotive manufacturing, machinery industry, household appliance manufacturing, hardware tool processing, decorative advertising and other machinery manufacturing and processing industries
