Leapion's Automatic Loading and Unloading Systems for Laser Cutting Efficiency
Transform your sheet metal work with Leapion's Automated Loading Robots. Boost accuracy, speed up your workflow, and achieve greater productivity. Our advanced robots adapt to various laser cutters, providing personalized solutions that meet your industry's specific needs. With Leapion, you'll gain access to cutting-edge robotics and exceptional customer support. Contact us to upgrade your production line today.

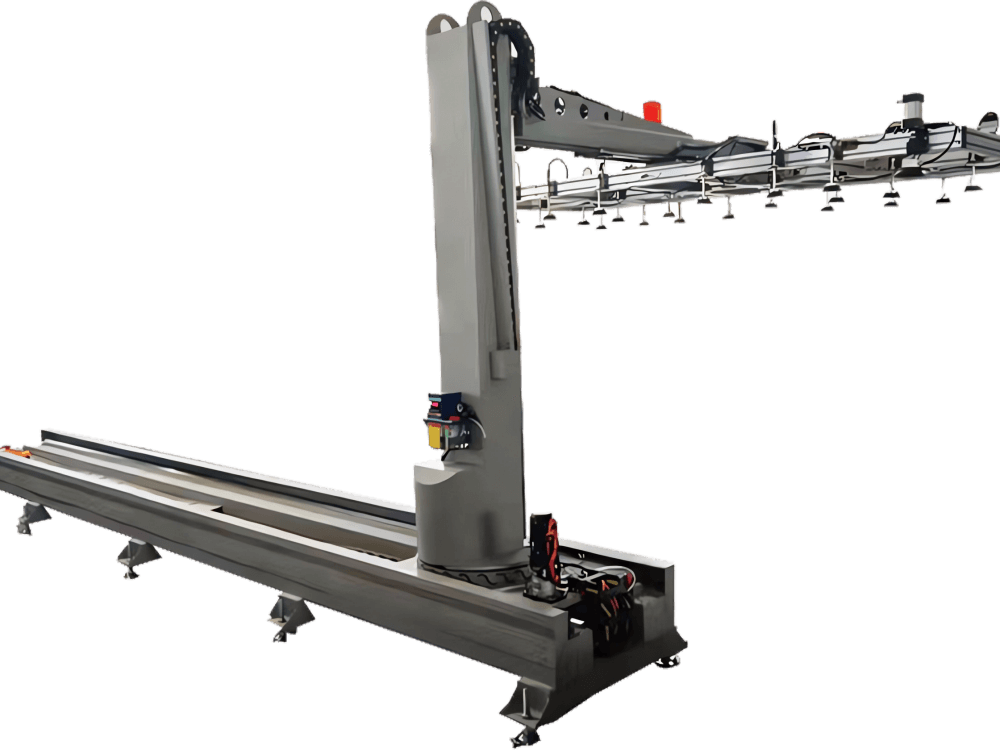

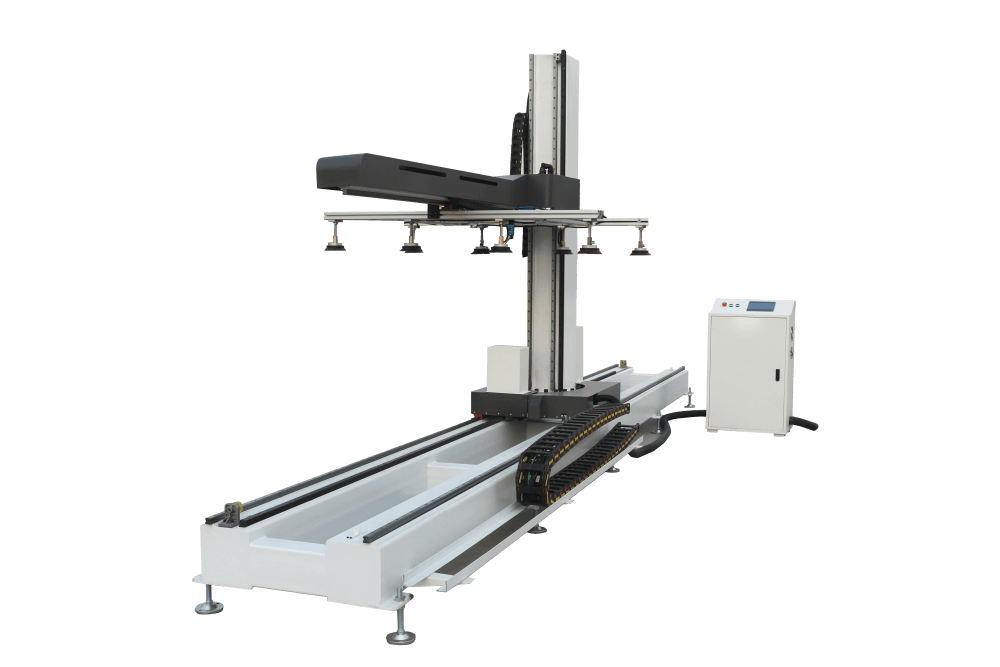

Guide Rail Robot - Automatic Feeding
Guide Rail Robots are multi-station robots developed according to customer needs. It is suitable for loading and unloading of laser cutting machines and plates. The robot system has high efficiency, high stability, simple structure, and more convenient maintenance, which can meet the production of different types of products. For users, it can quickly adjust product structure, expand production capacity, and greatly reduce the labor intensity of industrial workers.
 Small footprint;
 Simple structure and strong load capacity;
 Simple maintenance and easy operation;
 It can serve the loading and unloading of no more than three stations;
 Standard automatic splitting system;
 It can be used with manual sheet material library.

Technical Parameters

Number of axes
Three axis
Positioning accuracy
±0.5MM
Repeatability
±3MM
Maximum speed
25M/MIN
Carrying capacity
≦150KG
The scope of work
3000MM-48000MM
Rated voltage
220V 50HZ/60HZ
Air supply pressure
0.55MPa
Machine weight
700KG
Single sheet maximum thickness
4MM
Single sheet minimum thickness
0.5MM
Equipment principle
Customizable in length, this robot's system can extend to serve up to three fiber laser cutting machines, offering versatile loading capabilities.

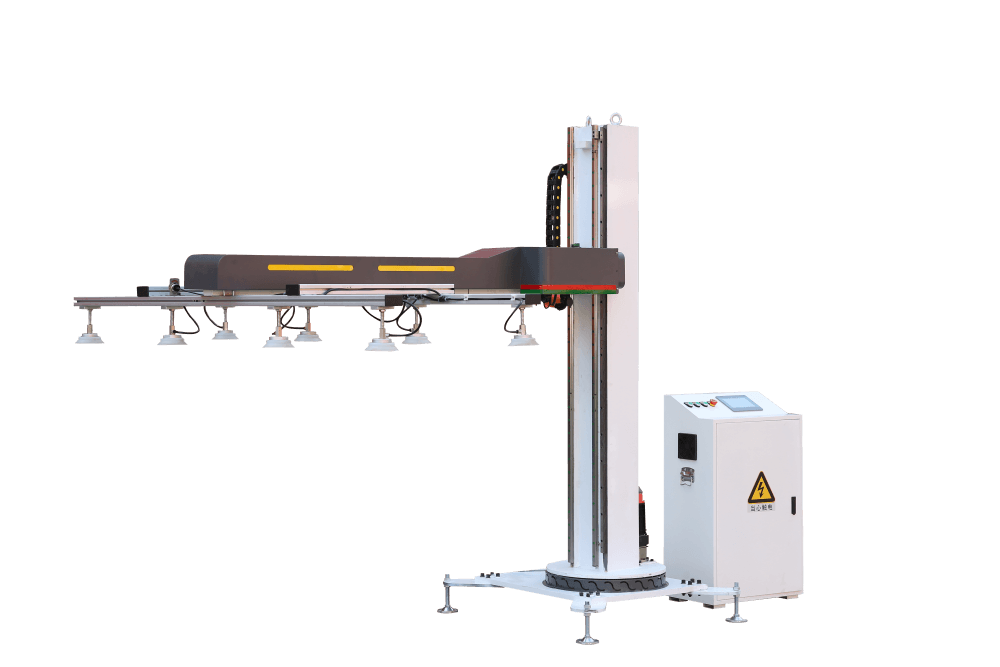

Column Robot - Automatic Feeding
Column Robot is a special operation robot developed according to sheet metal equipment users. It is suitable for loading and unloading of laser cutting machines and plates. The robot system has high efficiency, high stability, simple structure, and more convenient maintenance. It can meet the production of different types of products. . For users, it can quickly adjust product structure, expand production capacity, and greatly reduce the labor intensity of industrial workers.
 Small footprint;
 Simple structure and strong load capacity;
 Simple maintenance and easy operation;
 Standard automatic splitting system;
 It can be used with manual sheet material library.

Technical Parameters

Number of axes
Two axis
Positioning accuracy
±1MM
Repeatability
±3MM
Maximum speed
25M/MIN
Carrying capacity
≦150KG
The scope of work
200MM-1700MM,359°
Rated voltage
220V 50HZ/60HZ
Air supply pressure
0.55MPa
Machine weight
500KG
Single sheet maximum thickness
4MM
Single sheet minimum thickness
0.5MM
Equipment principle
Known for its high efficiency, stability, simple structure, and convenient maintenance, this system streamlines operations.

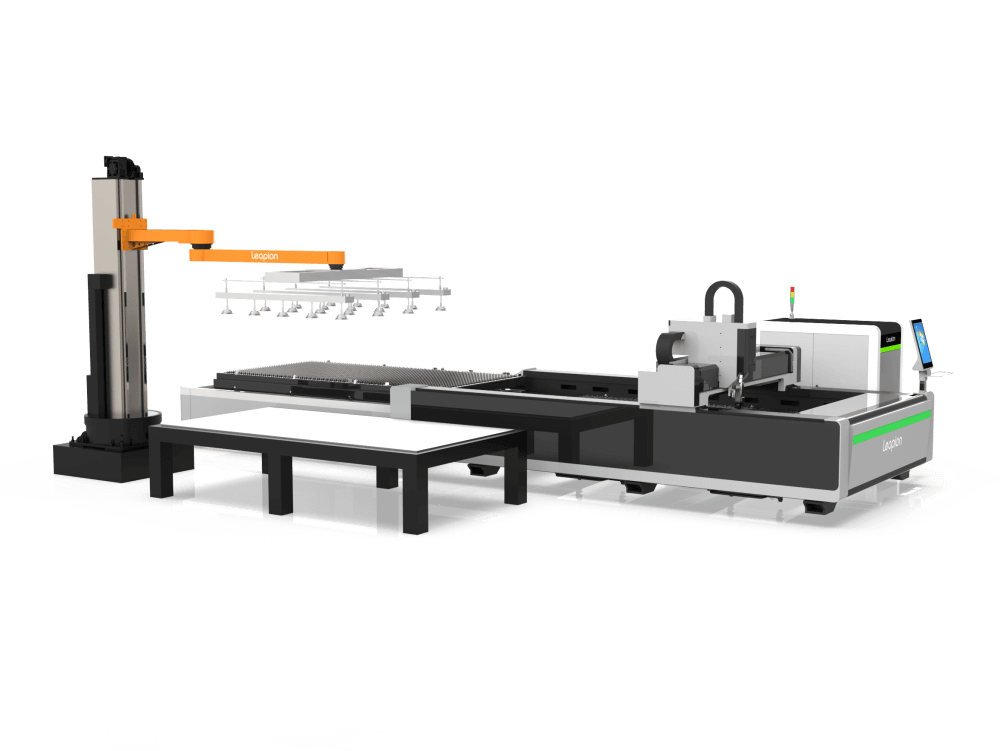

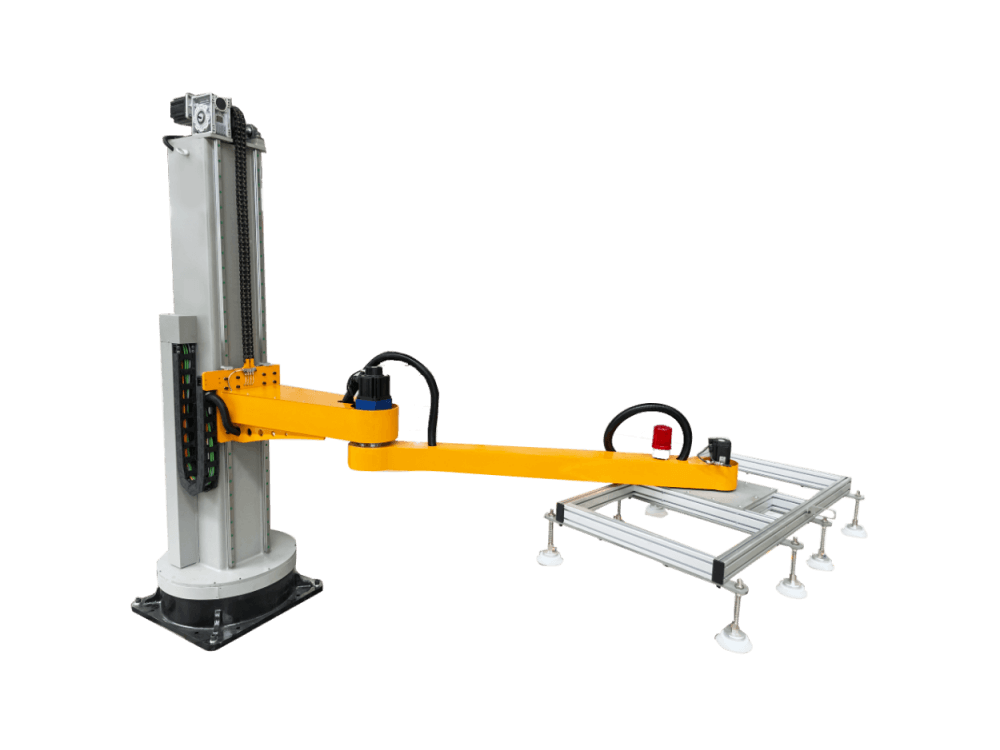

Four-axis Column Robot - Automatic Feeding
Four-axis Column Robot is a special operation robot developed according to sheet metal equipment users. It is suitable for loading and unloading laser cutting machines and plates. The robot system has high efficiency, high stability, simple structure, and more convenient maintenance. It can meet different types of products. production. For users, it can quickly adjust product structure, expand production capacity, and greatly reduce the labor intensity of industrial workers.
 Small footprint;
 Stronger load capacity;
 Strong scalability, and able to serve multiple devices at the same time;
 Standard automatic splitting system;
 Can be used with manual sheet material library;
 Bus system, bus absolute value motor, strong anti-interference ability, no need to return to the origin when starting up, faster transmission speed, standard teaching pendant, saving offline programming time.

Technical Parameters

Number of axes
Four axis
Positioning accuracy
±1MM
Repeatability
±5MM
Maximum speed
40M/MIN
Carrying capacity
≦200KG
The scope of work
1.9M,359°
Rated voltage
220V
Air supply pressure
0.55MPa
Machine weight
200KG
Single sheet maximum thickness
4MM
Single sheet minimum thickness
0.5MM
Equipment principle
With minimal restrictions on the machine model, this robot offers a wide range of rotation angles, allowing for material pickup from various positions.

Leapion Sheet Metal Loading Unloading System FAQ:

    Q How can I get a precise quote for the Leapion Laser Cutting Auto Load/Unload System?

    A At Leapion, we prioritize each customer's needs, offering detailed quotes for our sheet metal loading and unloading systems. Just provide us with your material specs and machine type for integration. Our system is flexible, working with different metal processing equipment. Our engineers will craft a custom plan to fit your space perfectly.
  • How much does shipping from China to my place cost?

    Leapion can manage the delivery of equipment to your nearest port or straight to your address, using sea or rail. Please provide your address details to proceed. Our trusted transport partners ensure safe, quick, and reliable service. Leapion is dedicated to providing a top-notch shipping experience for our sheet metal loading and unloading systems.
  • Do you offer guidance on using the system?

    Yes, indeed. Once we set up your system, we'll train your team thoroughly. They'll learn everything from operating it to keeping it up, ensuring they can run it smoothly.
  • What about after-sales service?

    Leapion is committed to excellent after-sales service. If you need help during the warranty period, we respond within 60 minutes of your call. If the situation calls for it, we'll send skilled technicians right to you. They'll take care of consultations, maintenance, and replace parts if necessary. You'll also get a full report about the service. Plus, we offer remote help to maintain and repair all equipment for a year after we finish your project, to keep your system working perfectly.
